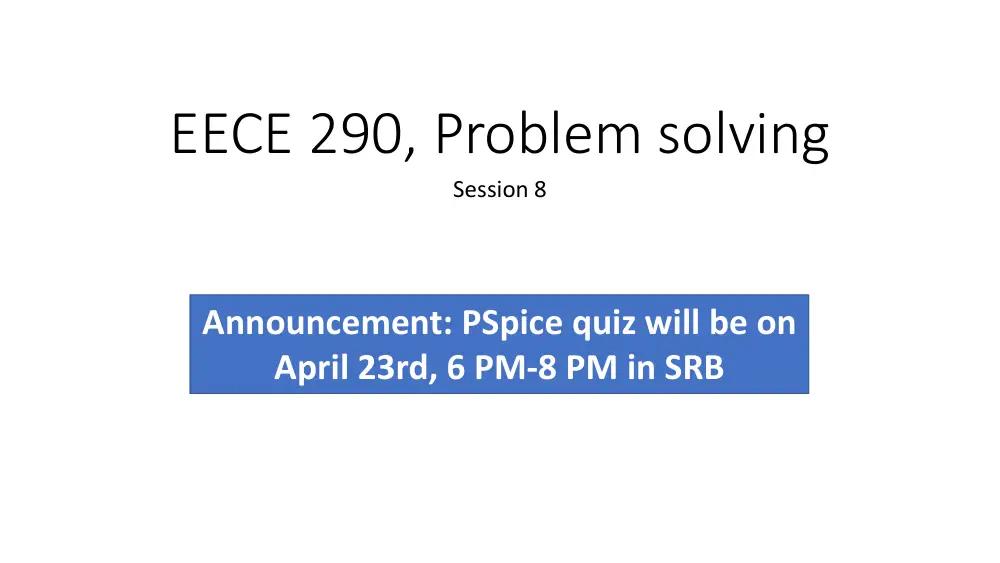

EECE 290, Problem solving
Session 8
Announcement: PSpice quiz will be on
April 23rd, 6 PM-8 PM in SRB

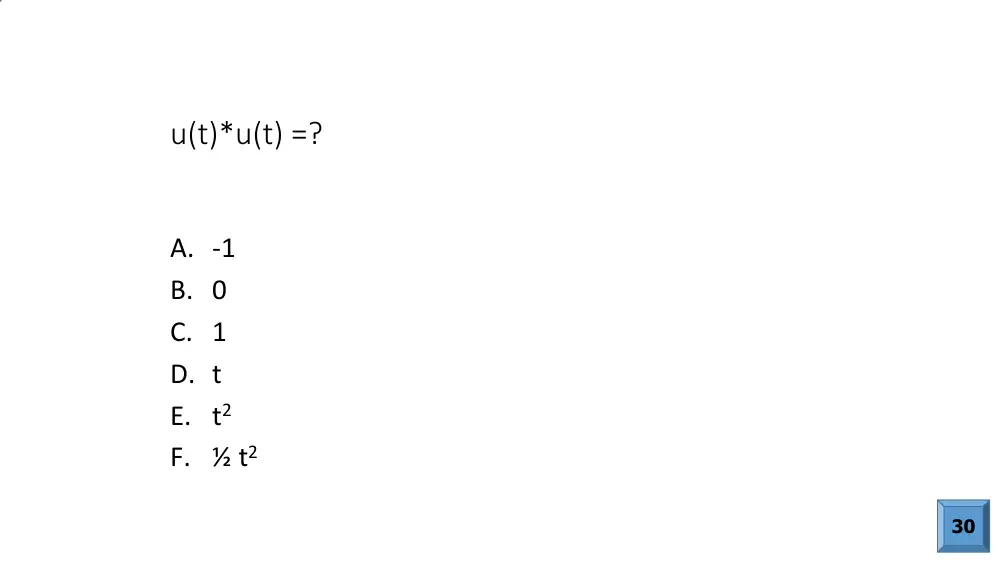

u(t)*u(t) =?
A. -1
B. 0
C. 1
D. t
E. t2
F. ½ t2
30

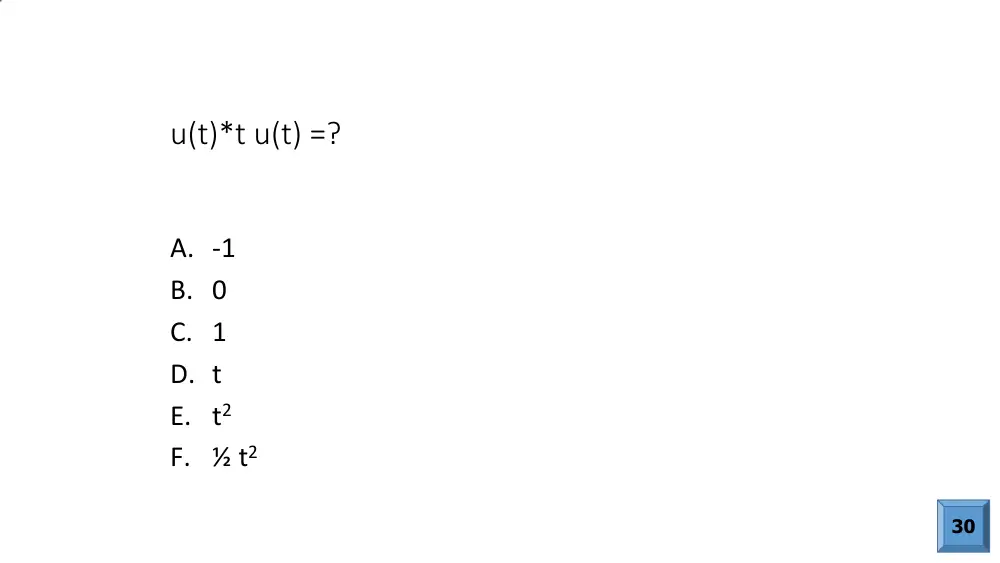

u(t)*t u(t) =?
A. -1
B. 0
C. 1
D. t
E. t2
F. ½ t2
30

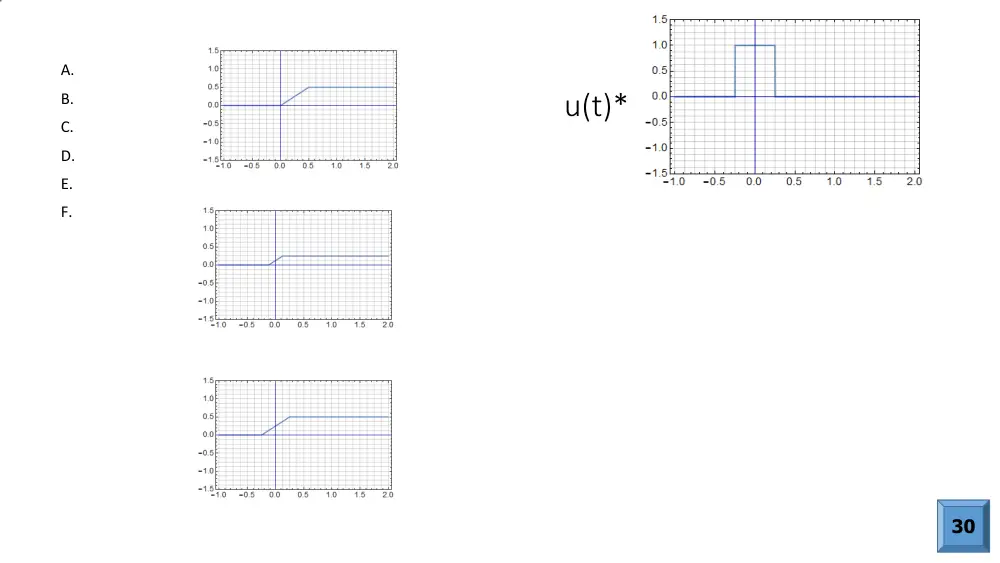

u(t)*
A.
B.
C.
D.
E.
F.
30

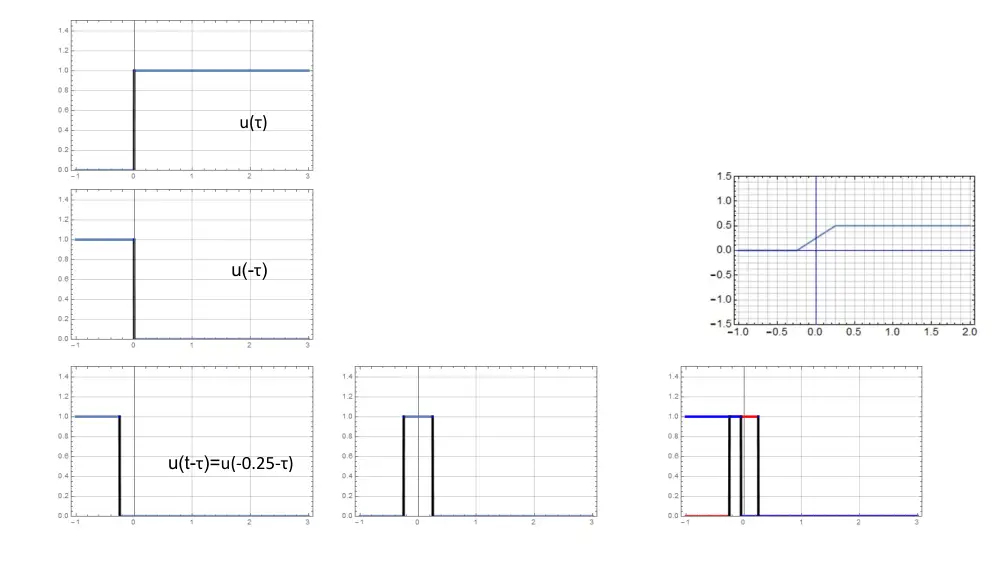

u(τ)
u(-τ)
u(t-τ)=u(-0.25-τ)

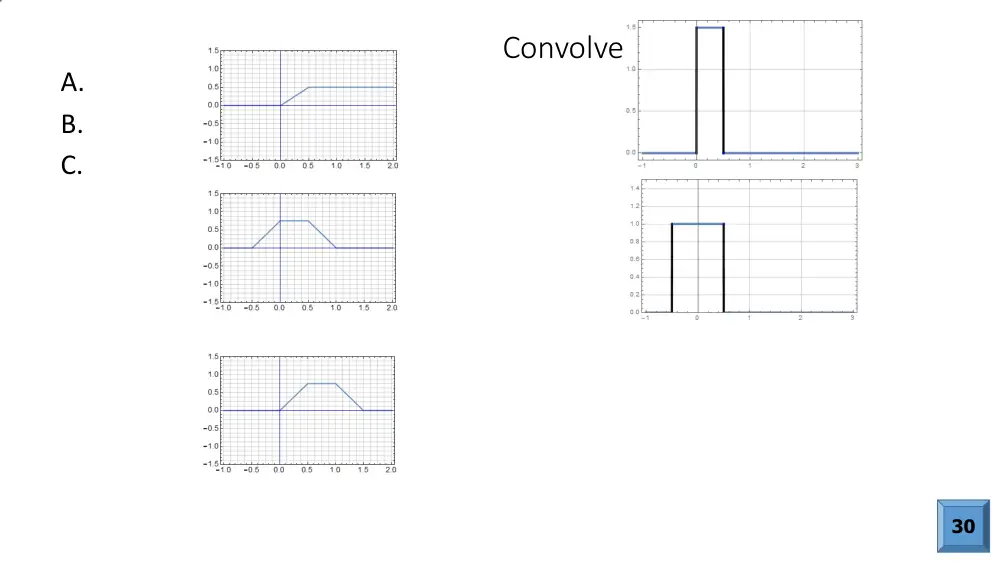

Convolve
A.
B.
C.
30

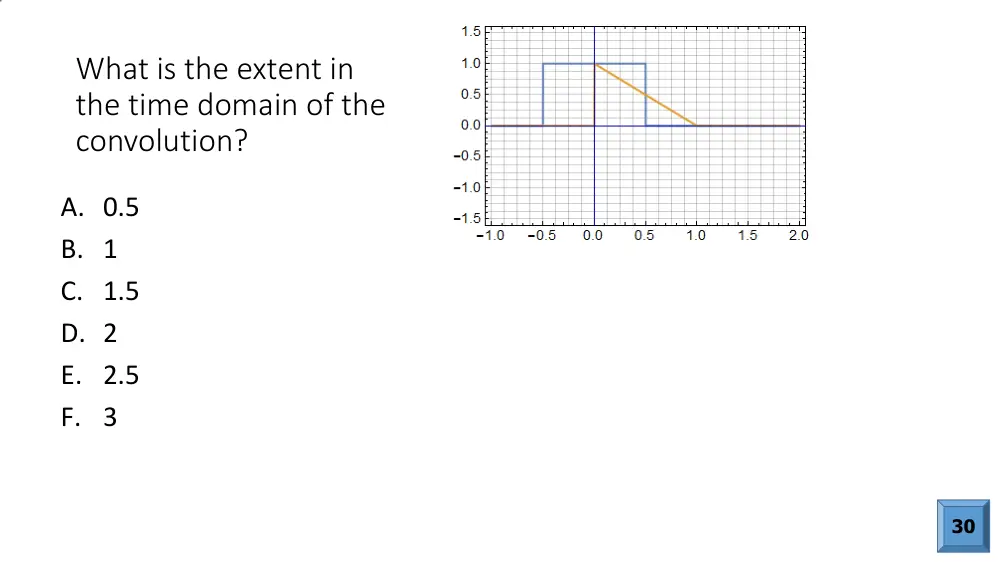

What is the extent in
the time domain of the
convolution?
A. 0.5
B. 1
C. 1.5
D. 2
E. 2.5
F. 3
30

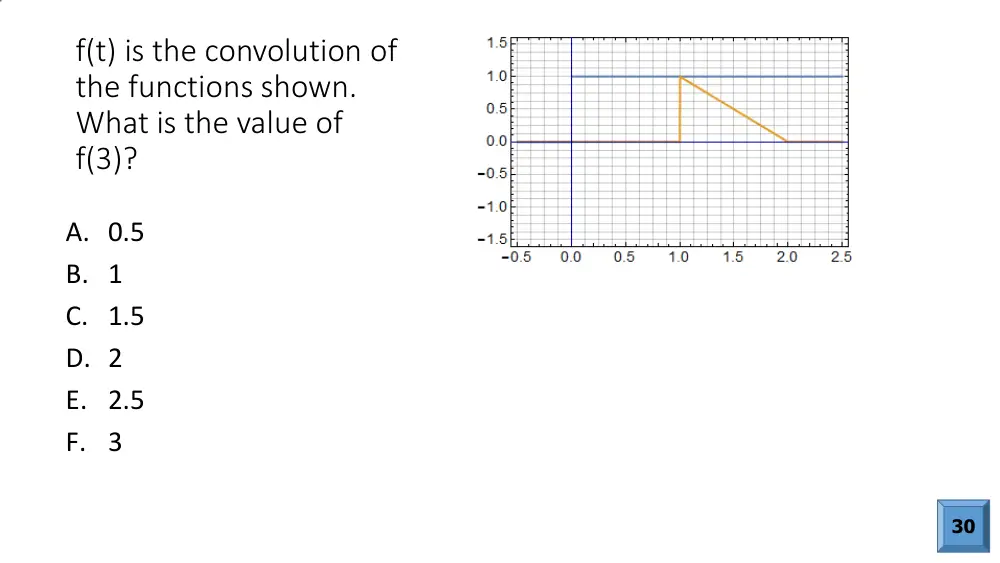

f(t) is the convolution of
the functions shown.
What is the value of
f(3)?
A. 0.5
B. 1
C. 1.5
D. 2
E. 2.5
F. 3
30

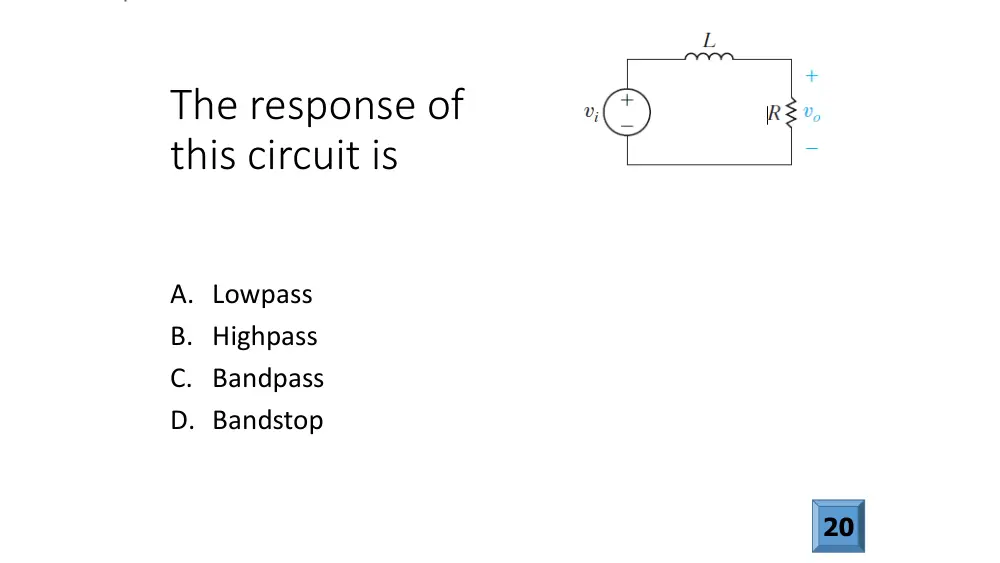

The response of
this circuit is
A. Lowpass
B. Highpass
C. Bandpass
D. Bandstop
20

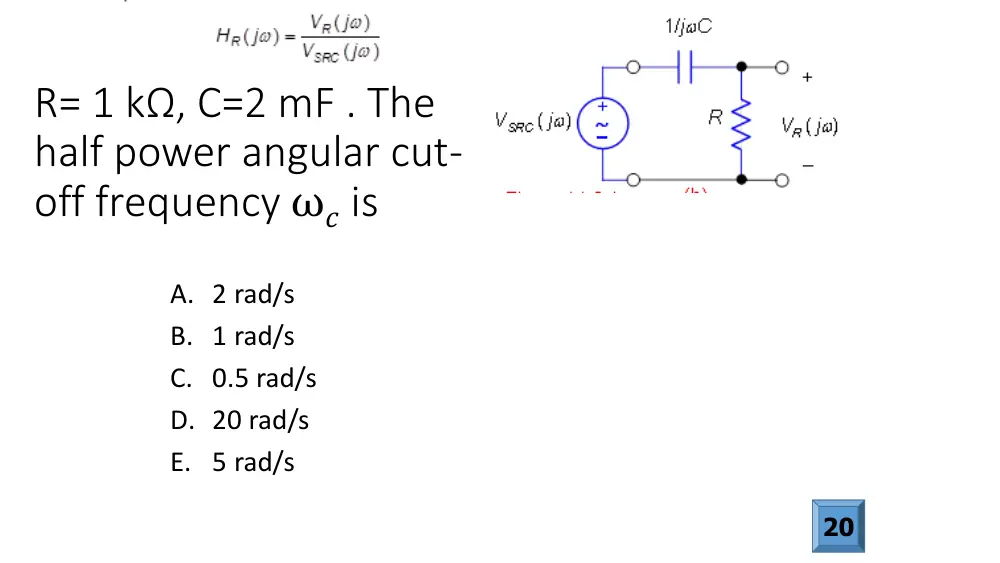

R= 1 kΩ, C=2 mF . The
half power angular cut-
off frequency ω𝑐𝑐 is
A. 2 rad/s
B. 1 rad/s
C. 0.5 rad/s
D. 20 rad/s
E. 5 rad/s
20
H(jω)=Vo/Vs, R = 1 kΩ, L
= 0.5 mH. The half
power angular cut-off
frequency ω𝑐𝑐 is
A. 1000 rad/s
B. 1 Mrad/s
C. 0.5 mrad/s
D. 2 Mrad/s
E. 5 krad/s
20
H(jω)=I2/Is, R= 1 kΩ,
L=0.5 mH. The half
power angular cut-off
frequency ω𝑐𝑐 is
A. 1000 rad/s
B. 1 Mrad/s
C. 0.5 mrad/s
D. 2 Mrad/s
E. 5 krad/s
20
