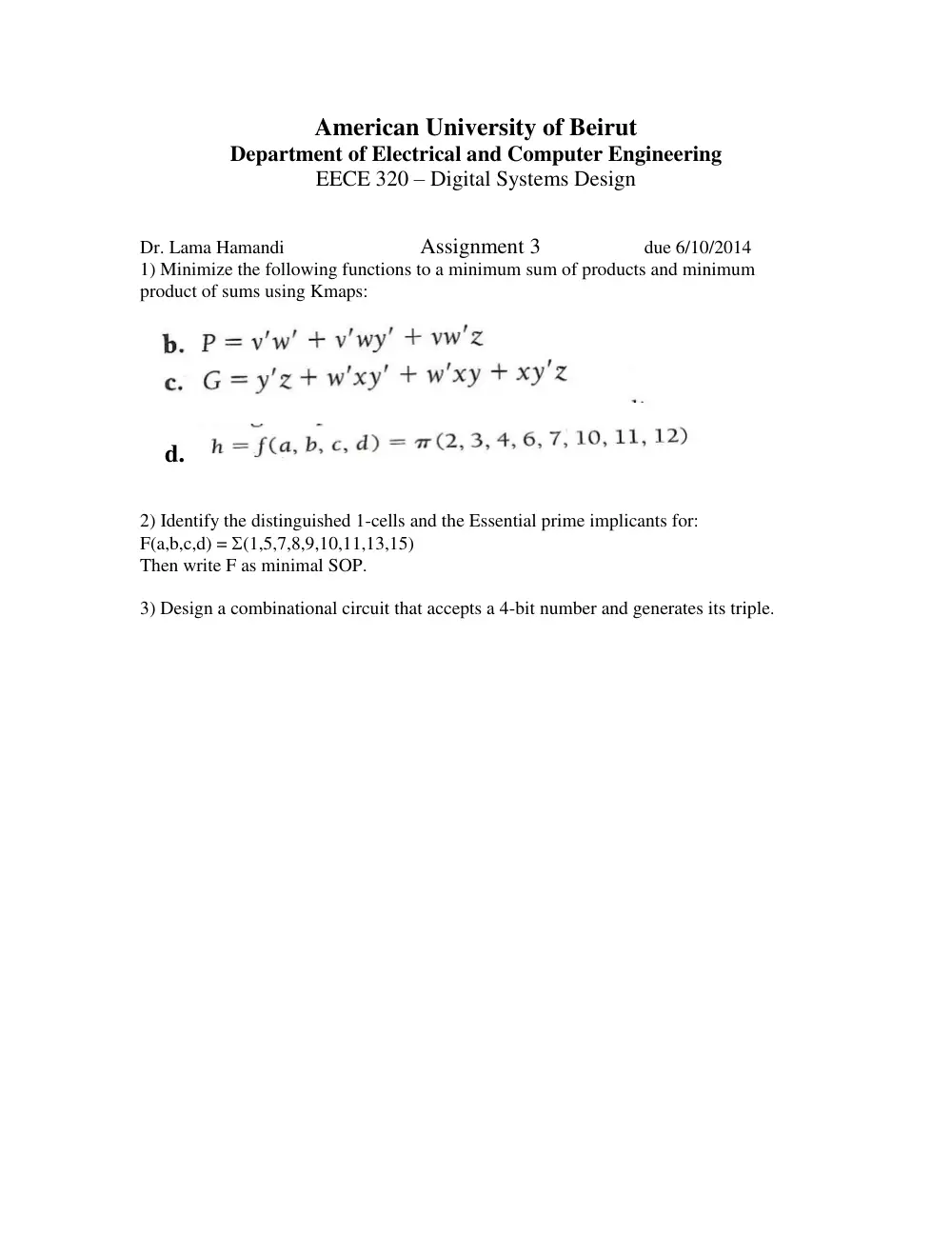

EECE 320 Homework 3, Fall 2014

American University of Beirut Department of Electrical and Computer Engineering EECE 320 – Digital Systems Design Dr. Lama Hamandi Assignment 3 due 6/10/2014 1) Minimize the following functions to a minimum sum of products and minimum product of sums using Kmaps: d. 2) Identify the distinguished 1-cells and the Essential prime implicants for: F(a,b,c,d) = (1,5,7,8,9,10,11,13,15) Then write F as minimal SOP. 3) Design a combinational circuit that accepts a 4-bit number and generates its triple.
