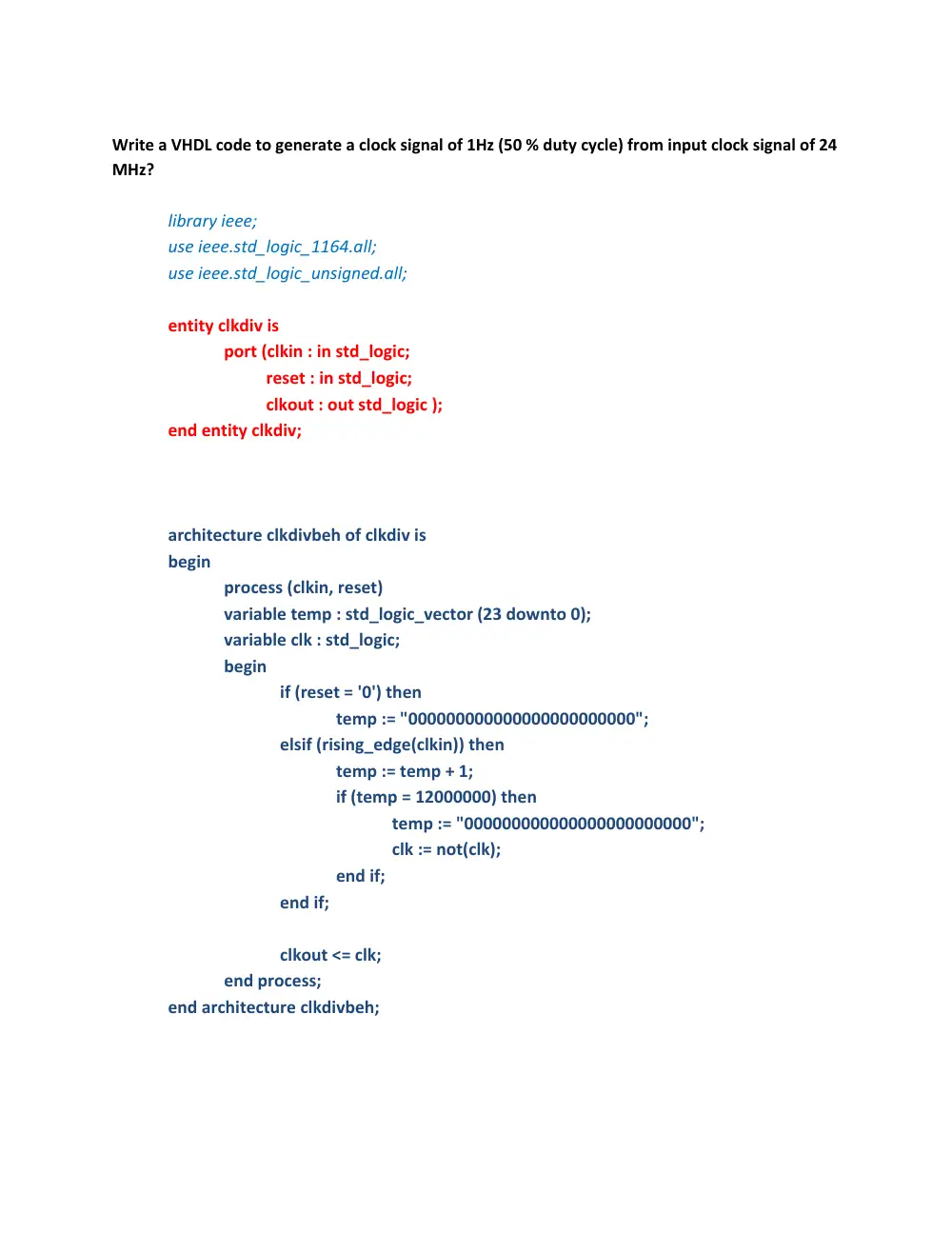

Write a VHDL code to generate a clock signal of 1Hz (50 % duty cycle) from input clock signal of 24
MHz?
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity clkdiv is
port (clkin : in std_logic;
reset : in std_logic;
clkout : out std_logic );
end entity clkdiv;
architecture clkdivbeh of clkdiv is
begin
process (clkin, reset)
variable temp : std_logic_vector (23 downto 0);
variable clk : std_logic;
begin
if (reset = '0') then
temp := "000000000000000000000000";
elsif (rising_edge(clkin)) then
temp := temp + 1;
if (temp = 12000000) then
temp := "000000000000000000000000";
clk := not(clk);
end if;
end if;
clkout <= clk;
end process;
end architecture clkdivbeh;
