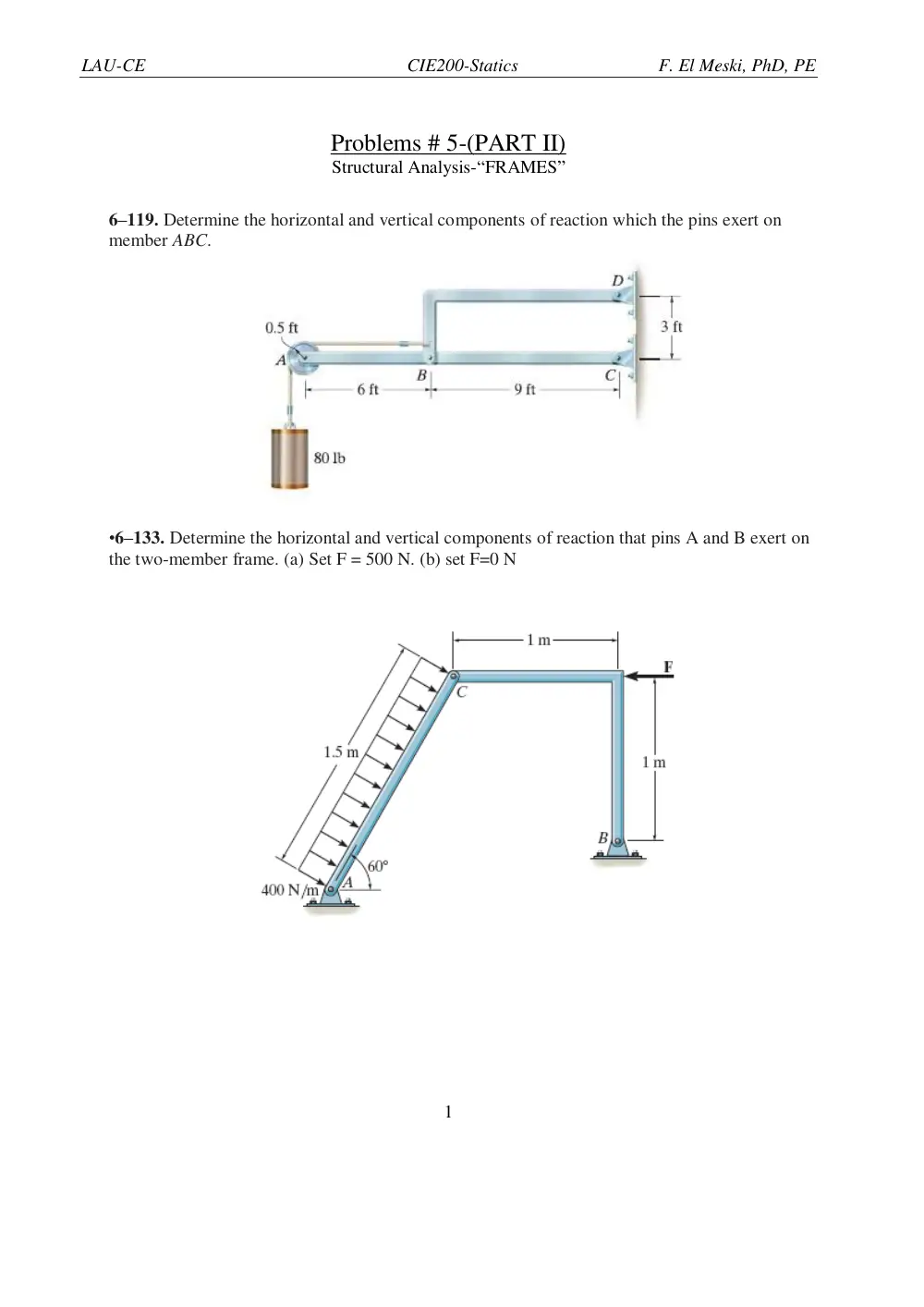

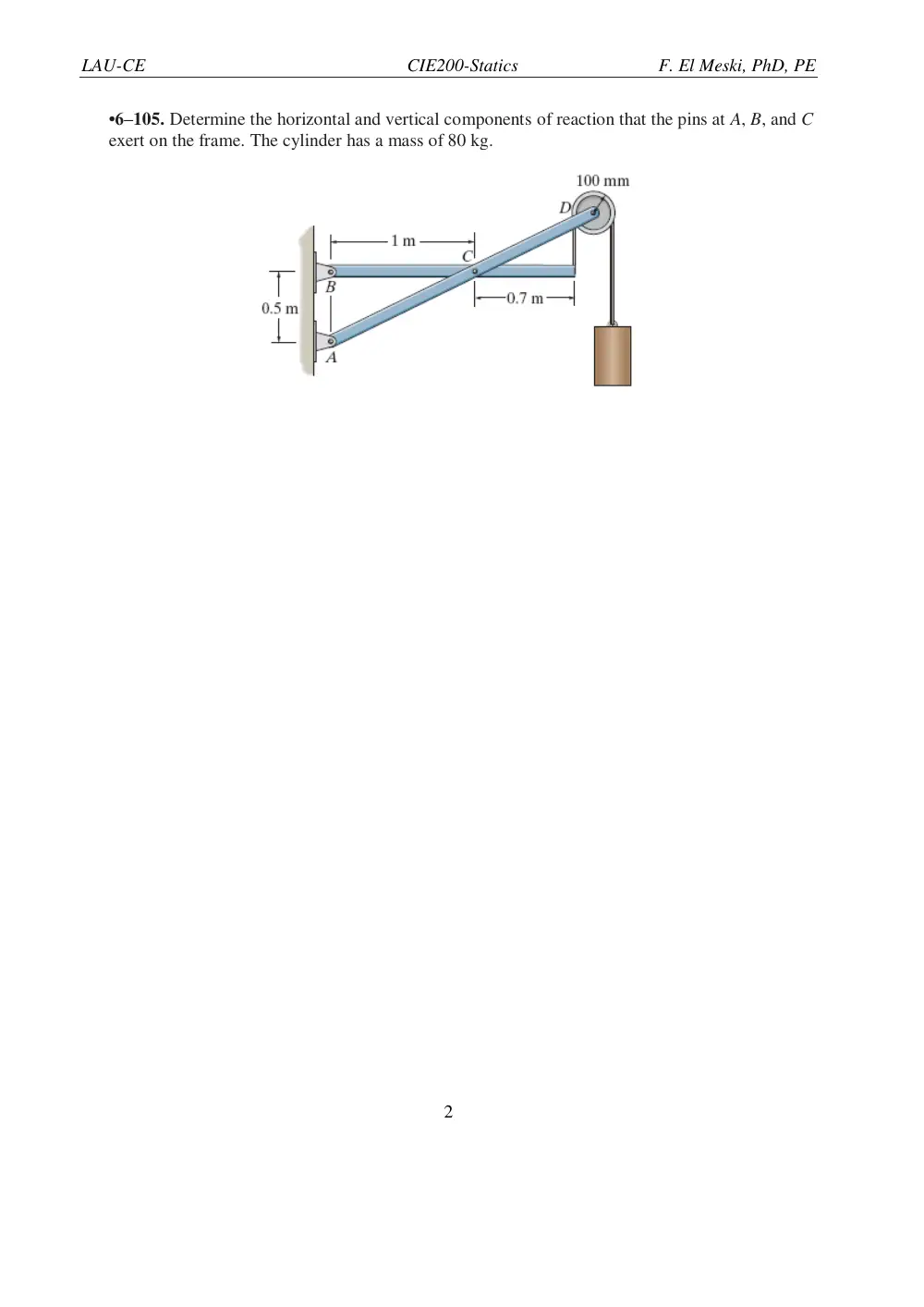

LAU-CE CIE200-Statics F. El Meski, PhD, PE 1 Problems # 5-(PART II) Structural Analysis-“FRAMES” 6–119. Determine the horizontal and vertical components of reaction which the pins exert on member ABC. •6–133. Determine the horizontal and vertical components of reaction that pins A and B exert on the two-member frame. (a) Set F = 500 N. (b) set F=0 N LAU-CE CIE200-Statics F. El Meski, PhD, PE 2 •6–105. Determine the horizontal and vertical components of reaction that the pins at A, B, and C exert on the frame. The cylinder has a mass of 80 kg.
