CIE 200 Homework 5 Frames Solution, Fall 2016

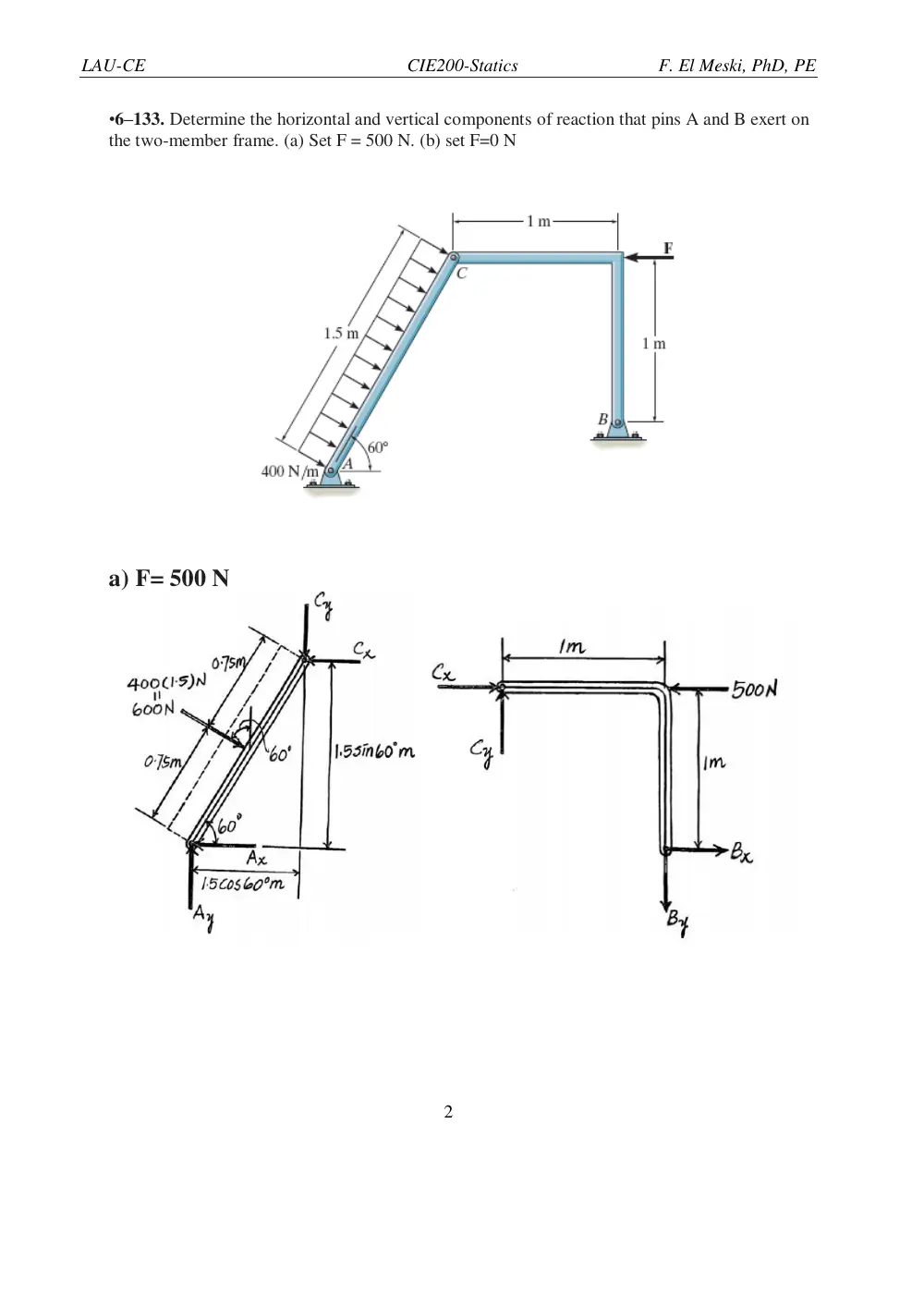

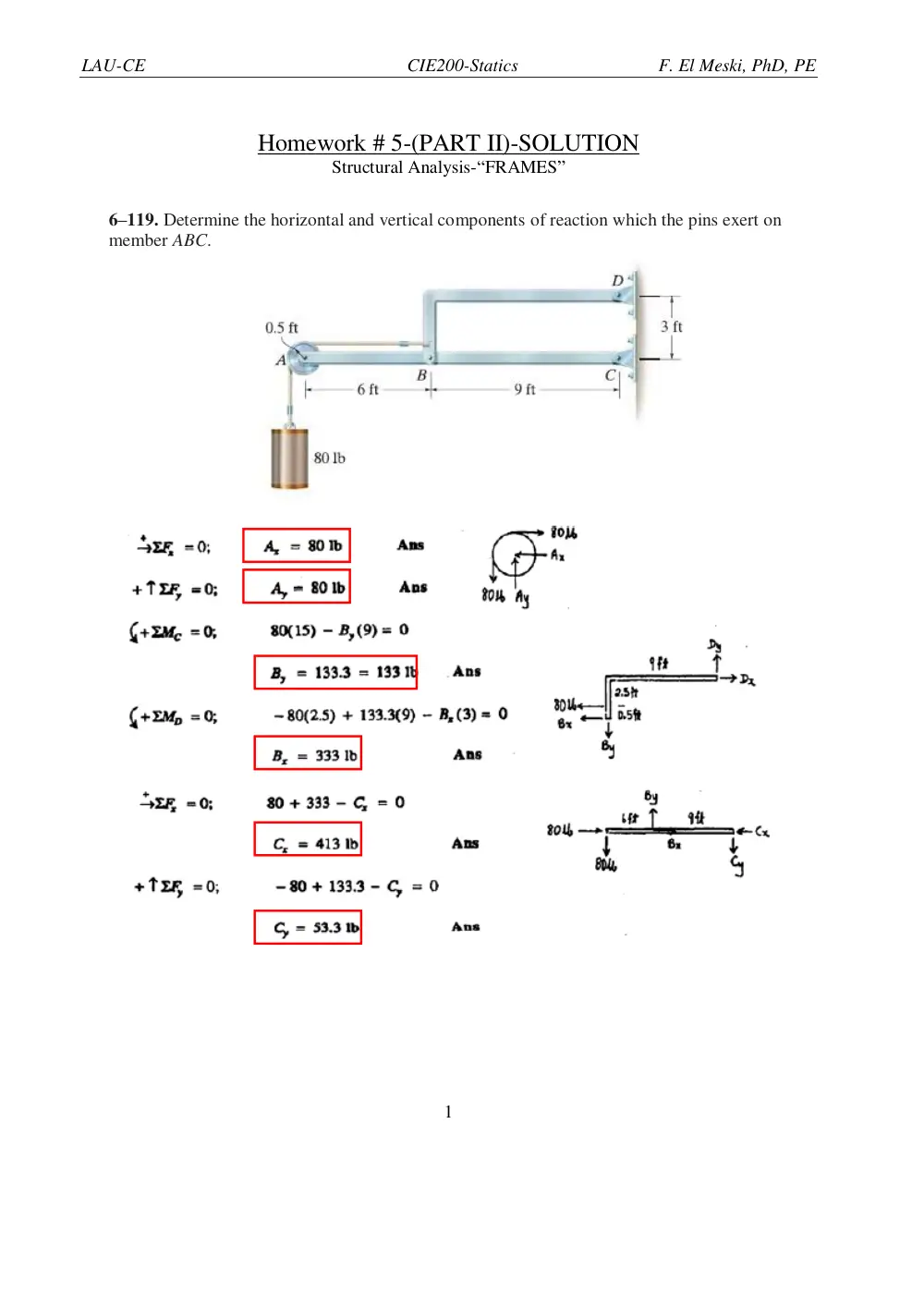

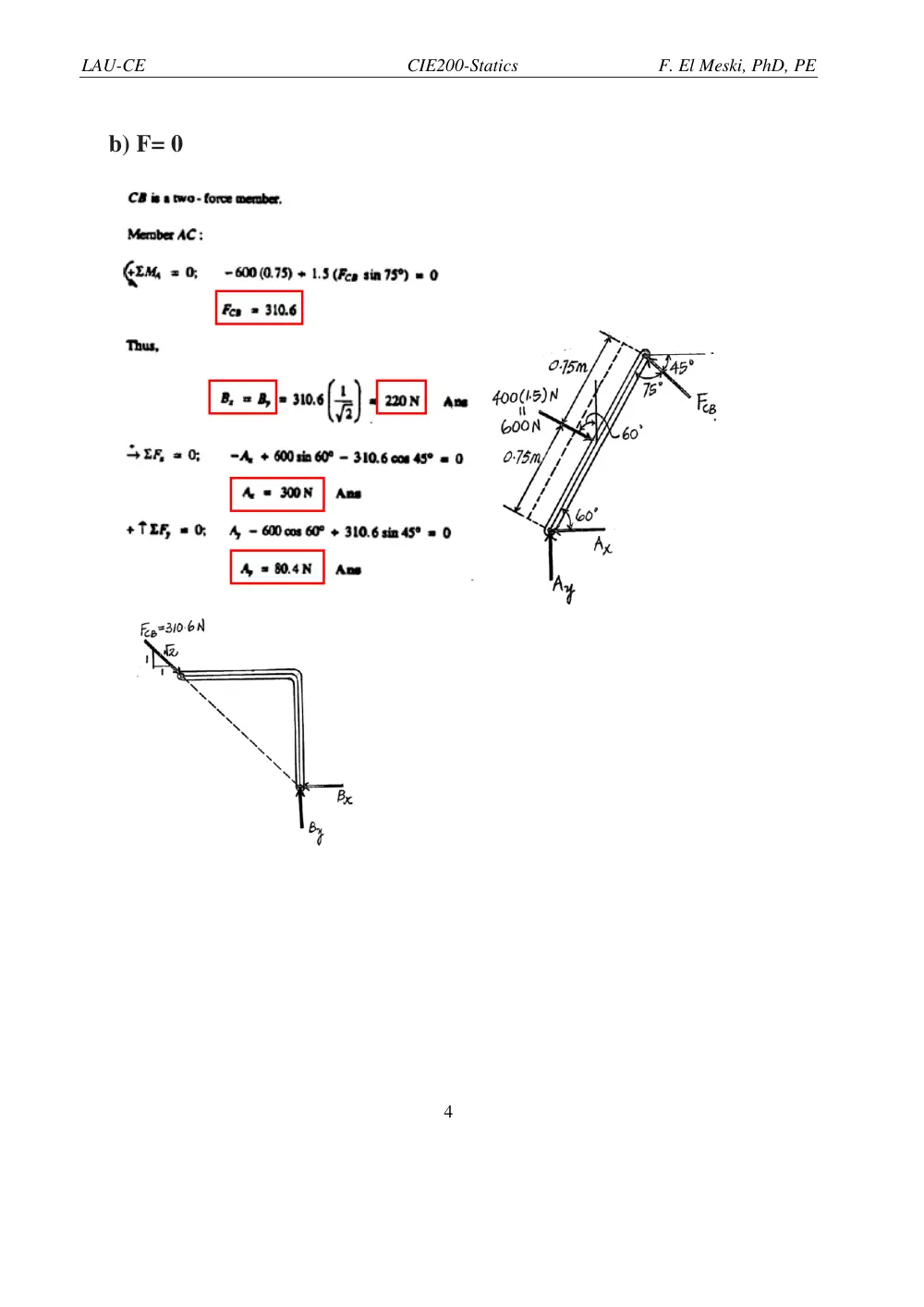

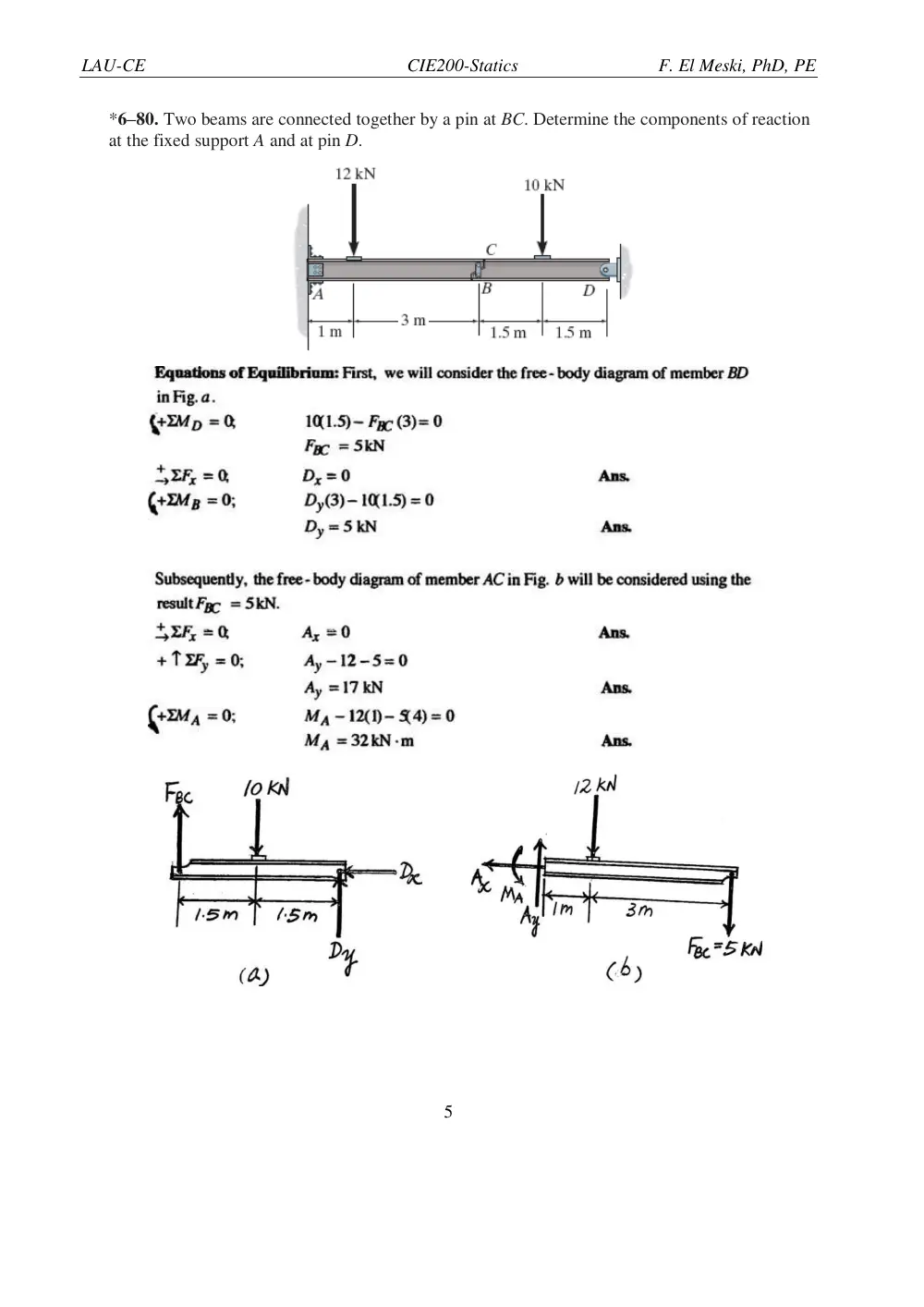

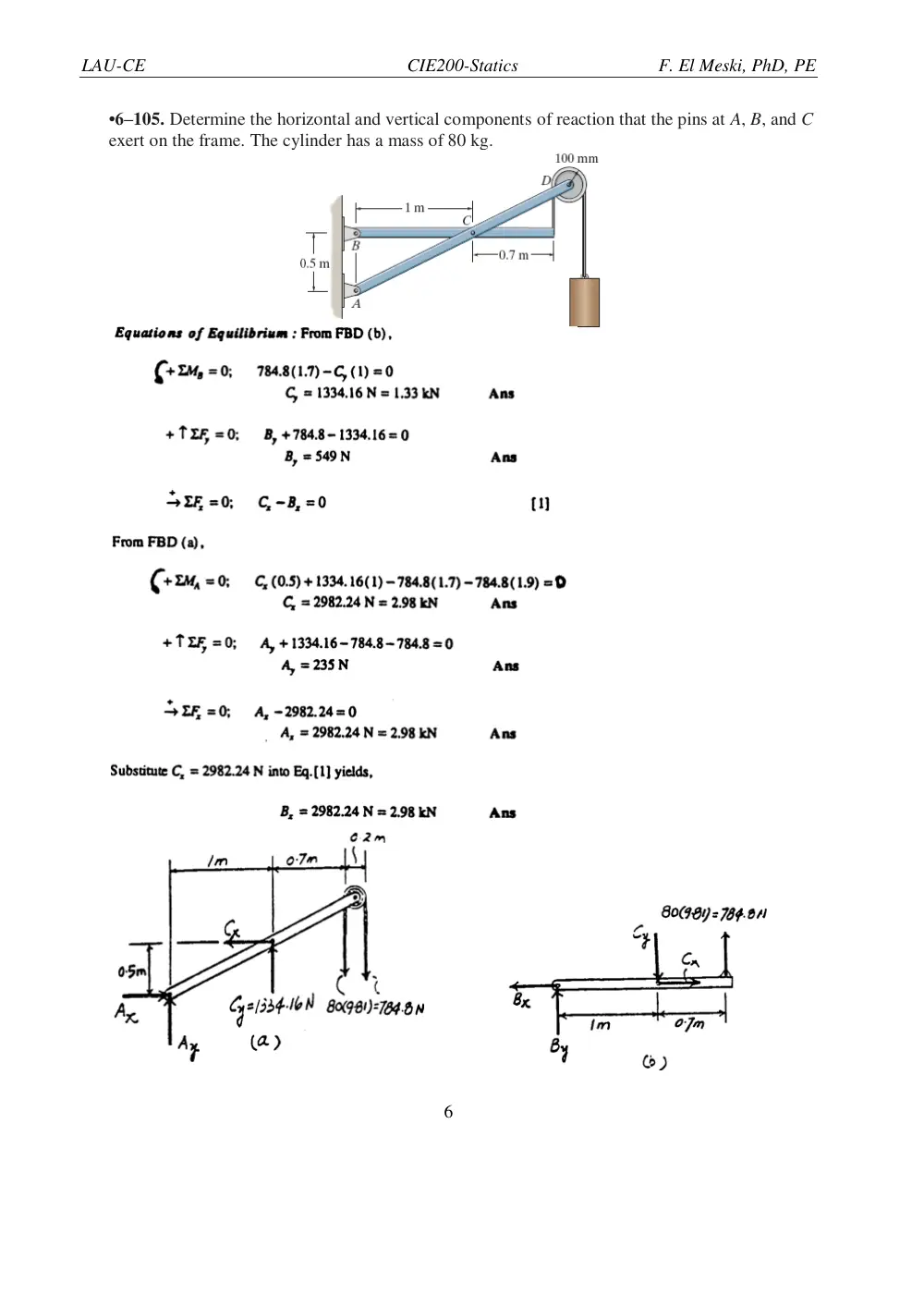

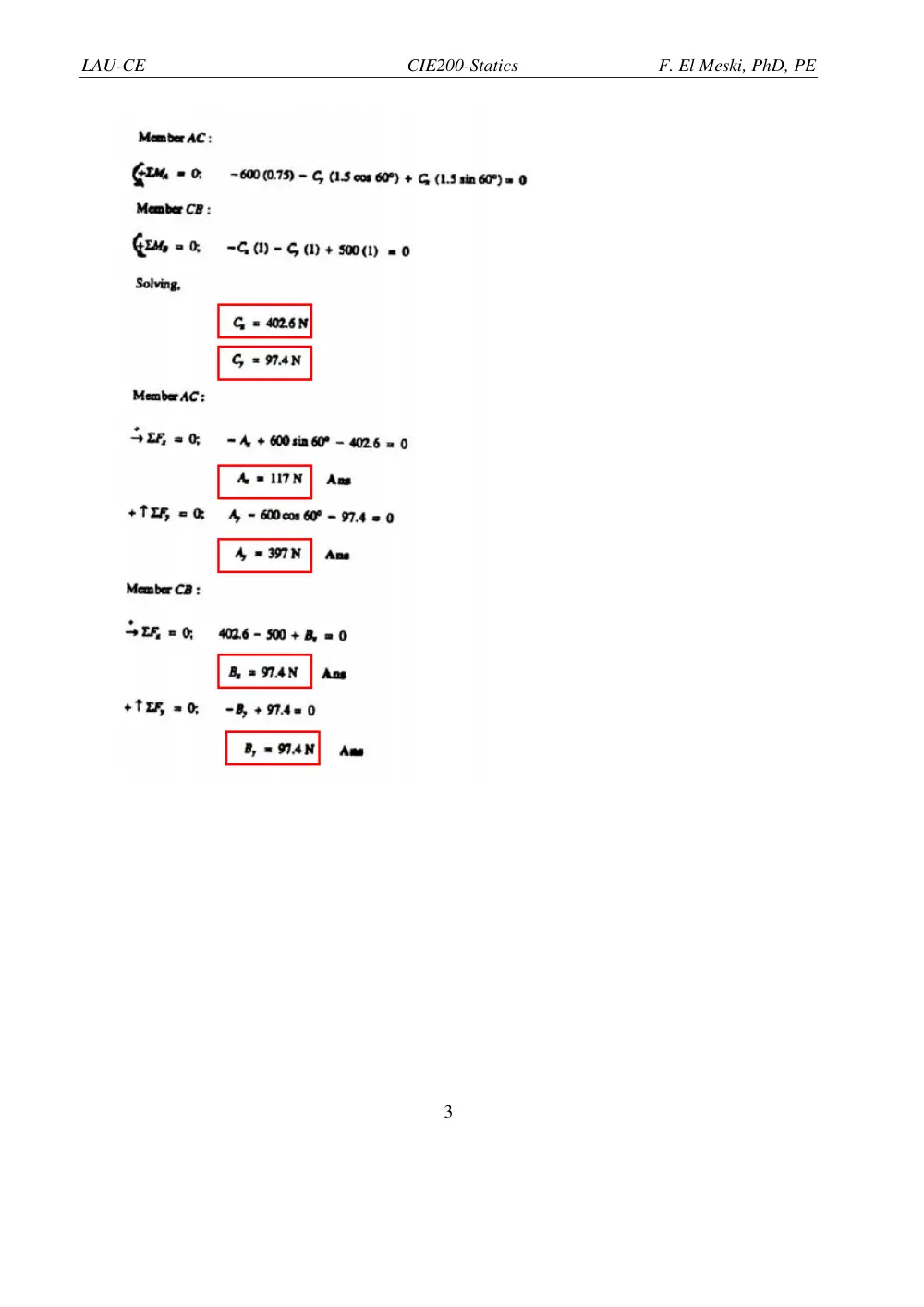

LAU-CE CIE200-Statics F. El Meski, PhD, PE 1 Homework # 5-(PART II)-SOLUTION Structural Analysis-“FRAMES” 6–119. Determine the horizontal and vertical components of reaction which the pins exert on member ABC. LAU-CE CIE200-Statics F. El Meski, PhD, PE 2 •6–133. Determine the horizontal and vertical components of reaction that pins A and B exert on the two-member frame. (a) Set F = 500 N. (b) set F=0 N a) F= 500 N LAU-CE CIE200-Statics F. El Meski, PhD, PE 3 LAU-CE CIE200-Statics F. El Meski, PhD, PE 4 b) F= 0 LAU-CE CIE200-Statics F. El Meski, PhD, PE 5 *6–80. Two beams are connected together by a pin at BC. Determine the components of reaction at the fixed support A and at pin D. LAU-CE CIE200-Statics F. El Meski, PhD, PE 6 •6–105. Determine the horizontal and vertical components of reaction that the pins at A, B, and C exert on the frame. The cylinder has a mass of 80 kg.
