CSC 310 Lab 3, Fall 2015

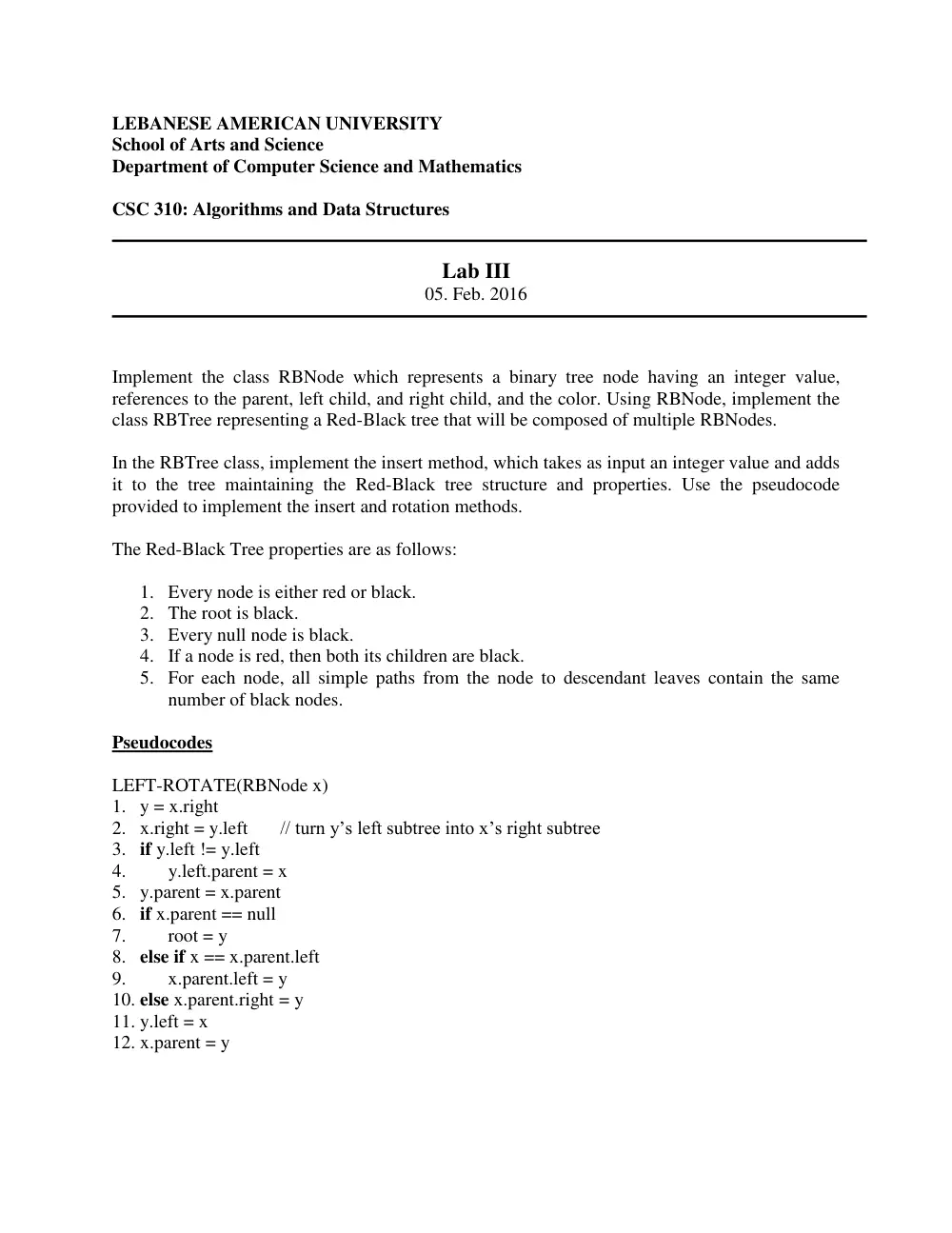

LEBANESE AMERICAN UNIVERSITY School of Arts and Science Department of Computer Science and Mathematics CSC 310: Algorithms and Data Structures Lab III 05. Feb. 2016 Implement the class RBNode which represents a binary tree node having an integer value, references to the parent, left child, and right child, and the color. Using RBNode, implement the class RBTree representing a Red-Black tree that will be composed of multiple RBNodes. In the RBTree class, implement the insert method, which takes as input an integer value and adds it to the tree maintaining the Red-Black tree structure and properties. Use the pseudocode provided to implement the insert and rotation methods. The Red-Black Tree properties are as follows: 1. Every node is either red or black. 2. The root is black. 3. Every null node is black. 4. If a node is red, then both its children are black. 5. For each node, all simple paths from the node to descendant leaves contain the same number of black nodes. Pseudocodes LEFT-ROTATE(RBNode x) 1. y = x.right 2. x.right = y.left // turn y’s left subtree into x’s right subtree 3. if y.left != y.left 4. y.left.parent = x 5. y.parent = x.parent 6. if x.parent == null 7. root = y 8. else if x == x.parent.left 9. x.parent.left = y 10. else x.parent.right = y 11. y.left = x 12. x.parent = y INSERT(int value) 1. z = new RBNode(value) 2. y = null 3. x = root 4. while x != null 5. y = x 6. if z.value < x.value 7. x = x.left 8. else x = x.right 9. z.parent = y 10. if y == null 11. root = z 12. else if z.value < y.value 13. y.left = z 14. else y.right = z 15. while z.parent.color == RED 16. if z.parent == z.parent.parent.left 17. y = z.parent.parent.right 18. if y.color == RED 19. z.parent.color = BLACK 20. y.color = BLACK 21. z.parent.parent.color = RED 22. z = z.parent.parent 23. else 24. if z == z.parent.right 25. z = z.parent 26. LEFT-ROTATE(z.parent.parent) 27. z.parent.color = BLACK 28. z.parent.parent.color = RED 29. RIGHT-ROTATE(z.parent.parent) 30. else 31. // same as above but replace left with right and vice versa 32. root.color = BLACK Problem 1 Given a sequence of integers, insert them into a Red-Black tree then print the tree using pre- order traversal. Input Your program will be tested against multiple test cases. Each test case is made up of two lines. The first line contains an integer N representing the number of integers. The second line has N integers to be inserted into the tree. Output For each test case, print the tree using pre-order traversal. Sample Input Sample Output 7 25 13 10 30 15 27 37 4 6 7 8 9 6 10 7 15 13 4 6 13 10 25 15 30 27 37 7 6 8 9 10 6 4 7 15 13 Problem 2 Given a sequence of integers, insert them into a Red-Black tree then print the height of the tree. Input Your program will be tested against multiple test cases. Each test case is made up of two lines. The first line contains an integer N representing the number of integers. The second line has N integers to be inserted into the tree. Output For each test case, print the height of the tree. Sample Input Sample Output 7 25 13 10 30 15 27 37 4 6 7 8 9 6 10 7 15 13 4 6 3 2 2
