BIO 223 Final, Spring 2007

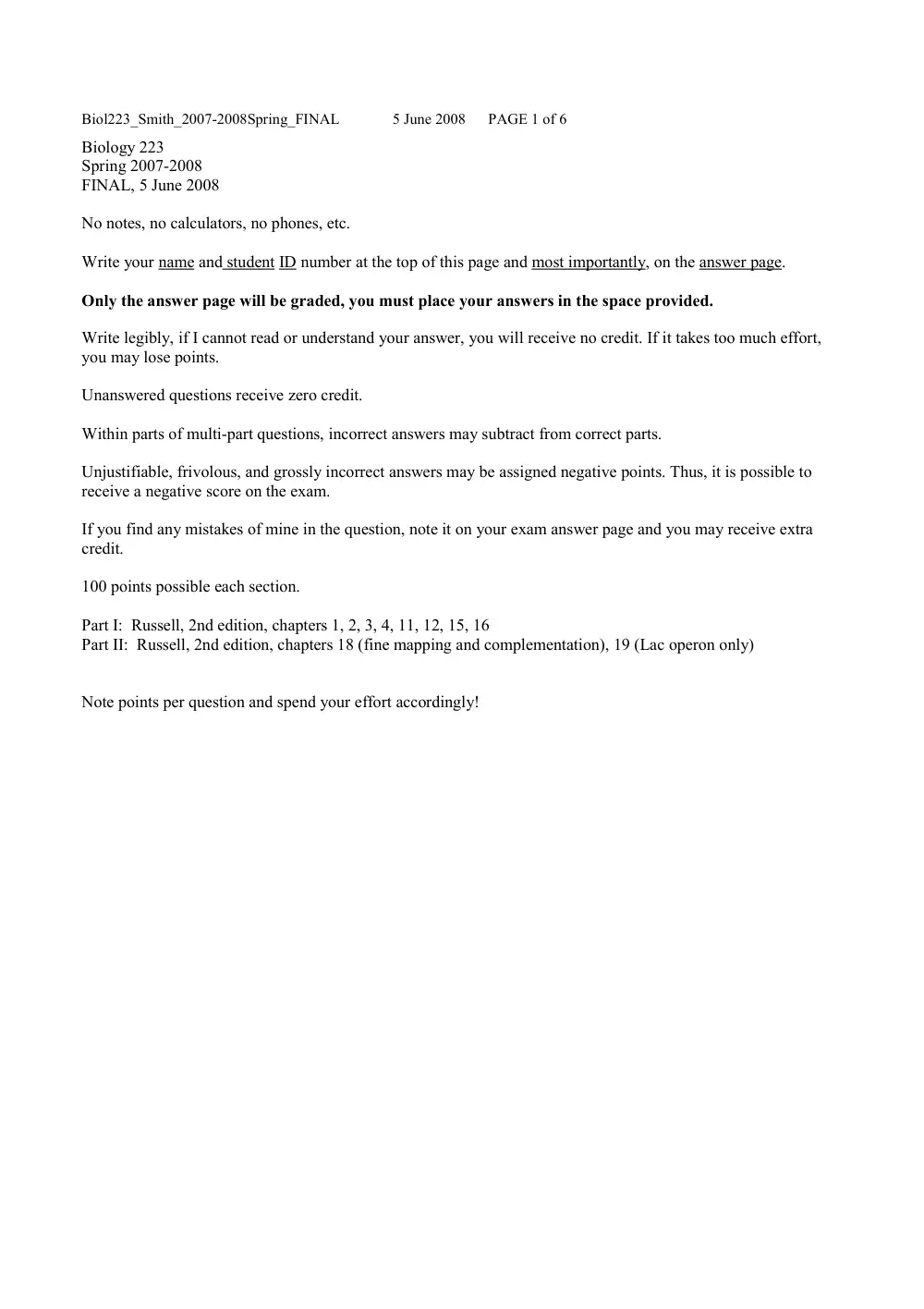

Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 1 of 6 Biology 223 Spring 2007-2008 FINAL, 5 June 2008 No notes, no calculators, no phones, etc. Write your name and student ID number at the top of this page and most importantly, on the answer page. Only the answer page will be graded, you must place your answers in the space provided. Write legibly, if I cannot read or understand your answer, you will receive no credit. If it takes too much effort, you may lose points. Unanswered questions receive zero credit. Within parts of multi-part questions, incorrect answers may subtract from correct parts. Unjustifiable, frivolous, and grossly incorrect answers may be assigned negative points. Thus, it is possible to receive a negative score on the exam. If you find any mistakes of mine in the question, note it on your exam answer page and you may receive extra credit. 100 points possible each section. Part I: Russell, 2nd edition, chapters 1, 2, 3, 4, 11, 12, 15, 16 Part II: Russell, 2nd edition, chapters 18 (fine mapping and complementation), 19 (Lac operon only) Note points per question and spend your effort accordingly! Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 2 of 6 SECTION I [100 pts] Question 1 for 16 points (5 minutes) Describe the 8 base pairs shown below in the table, writing Y (yes) or N (no) in the table to indicate whether it has Watson-Crick geometry (row WC), and the number (0, 1, or 2) of standard bases found in it (row #). pair 1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16 WC # Question 2 for 16 points (5 minute) The single strand of DNA below was annealed to two radioactively-labeled RNA primers: 5’- UGACUUGCUGA-3’ and 5’-GGUUCUAUAUACG-3’. The RNAs are radioactively labeled only at G nucleotides (shown underlined). Calculate the total lengths of the radioactive, single-strand product(s) expected from the addition of Escherichia coli DNA polymerase I or III in suitable buffer (Mg++, etc), without exposure to RNase, and the following dNTPs (your answers should be one or more whole numbers in each box): 5-ATCCGTCCGTCAGCAAGTCATGGTTCTATATACGCTTCGTATATAGAACCCTGACTTGCTGAG-3 dNTPs added dATP dATP+dCTP dATP+dCTP+dGTP all dNTPs DNA pol I DNA pol III Question 3 for 10 points (3 minutes) A cell line is thought to have its cell cycle comprising G1= 17 hours, G2= 13 hours, M=2 hours, S=4 hours. a) For how many hours would you leave tritiated thymidine in the medium in order to label one quarter of the cells? b) For how many hours would you leave tritiated thymidine in the medium in order to label one half of the cells? a) one quarter b) one half N N NH N N H2 NH NH O O 4 3 N N NH N N H2 NH NH O O 4 3 N HN NH N N H2 O N NH NH2 O 12 11 N HN NH N N H2 O N NH NH2 O 12 11 N N NH N NH2 NH2 N H NH O O 1 2 N N NH N NH2 NH2 N H NH O O 1 2 N N NH N N H2 NH NH O O 15 16 N N NH N N H2 NH NH O O 15 16 N N NH N NH2 N NH N H2 O 13 14 N N NH N NH2 N NH N H2 O 13 14 N NH NH N O NH N N H2 O 9 10 N NH NH N O NH N N H2 O 9 10 N H N NH N O NH2 N NH N H2 O 5 6 N H N NH N O NH2 N NH N H2 O 5 6 N N NH N NH2 N NH N H2 O 7 8 N N NH N NH2 N NH N H2 O 7 8 Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 3 of 6 Question 4 for 16 points (10 minutes) In a prototrophic strain of Neurospora crassa, intermediate A is synthesized from minimal medium by enzyme 1, etc. Consider the diagrammed hypothesis, where compounds D, E, and H are essential, but compound C is toxic, and all possible strains having single non-functional mutations in genes 1-8. Which mutant strains (numbered by mutant gene) would grow in minimal medium supplemented with: Question 5 for 16 points (10 minutes) A Drosophila strain was test crossed, and ~1000 progeny were phenotyped. Using proper notation and the data below: a) determine the gene order, labeled by loci. b) describe the genotype of the parent being test crossed in complete, proper notation, including order and linkage. c) determine between which two loci is the least separation and the approximate distance in map units. + b + d + 104 + b c d + 98 a + + + e 94 a + c + e 89 + + + d e 81 + + c d e 77 a b + + + 72 a b c + + 68 + b + + + 38 + b c + + 37 a + + d e 34 a + c d e 33 + b + d e 27 + b c d e 24 a + + + + 22 a + c + + 19 + + + + e 12 + + c + e 12 a b + d + 11 a b c d + 10 + + + d + 9 + + c d + 7 a b + + e 7 a b c + e 6 + b + + e 3 + b c + e 3 a + + d + 2 a + c d + 1 supplement strains that grow B D F G AAAA BBBB CCCC DDDD FFFF EEEE GGGG 1111 2222 3333 4444 2222 6666 HHHH 5555 7777 8888 6666 AAAA BBBB CCCC DDDD FFFF EEEE GGGG 1111 2222 3333 4444 2222 6666 HHHH 5555 7777 8888 6666 Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 4 of 6 Question 6 for 8 points (10 minutes) A breeding program has been designed for a human colony on Mars. Only the first generation has been born, the later generations are planned. Your concern are two alleles. Allele A is an autosomal dominant gene conferring the ability to survive dehydration. Allele x is an X-linked recessive gene causing edema in low pressure. All males in generation I are heterozygous for allele A, wild type in x. All females are wild-type for A, but carriers of allele x. Individuals III-1 and III-10 are to be wild-type humans thawed from frozen embryo stocks. Calculate the precise probability of the 4 individuals in the table below (leave factors unmultiplied): a) III-4 b) IV-4 c) V-1 d) V-4 probability has phenotype A probability has single allele of x Question 7 for 18 points (5 minutes) Locus a is on the short arm of a chromosome, while b, c, and d are on the long arm of a chromosome of Neurospora crassa. One parent is a+, b+, c+, d+ (solid bar), the other is a, b, c, d (double bar). Eight chiasmata are shown, where the centromeres are represented as thick lines, and crossing over is indicated from the ends of the thin dotted lines. There may be unmatched chiasmata and asci. a) For each ascus in the table, indicate its type (PD, NPD, or T) only with respect to locus a and c. b) Match the asci indicated with the chiasmata, by writing the chiasma labels (U-Z) below the asci genotypes. If no chiasma would create that ascus, write 0. REMEMBER SOLID IS + AND IS NULL 1 2 3 4 5 6 7 8 9 1 pair ++++ ++++ +bcd +bc+ a++d abcd abcd +++d a+cd 2 pair ++++ a+cd +bc+ +b+d +b++ a+c+ ++c+ +b++ ab++ 3 pair abcd ab++ a+++ a+c+ +bcd +b++ ab+d abcd +bcd 4 pair abcd +bcd a++d a++d a+c+ +++d ++++ a+c+ ++++ a) type (a, c) b) contributing chiasmata I-1,2,3,4,5,6 7,8,9,10,11,12 II-1,2,3,4,5,6 7,8,9,10,11 III-1,2,3,4,5,6 7,8,9,10 IV-1,2,3,4,5,6 7,8,9,10,11 V-1,2,3,4,5,6 I-1,2,3,4,5,6 7,8,9,10,11,12 II-1,2,3,4,5,6 7,8,9,10,11 III-1,2,3,4,5,6 7,8,9,10 IV-1,2,3,4,5,6 7,8,9,10,11 V-1,2,3,4,5,6 U V Y W Z X a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ U V Y W Z X a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ a+ b+c+ d+ Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 5 of 6 SECTION II [100 pts] Question 8 for 50 points (10 minute) Use the table below describing the results of a pairwise recombination test to form a map of 8 independently- isolated deletion mutants of the rII region of bacteriophage T4. Draw your map here, marking Xs where overlap occurs (there are more than sufficient columns). Question 9 for 50 points (5 minutes) HSV-1 is a complex double-stranded DNA virus that infects primate cells. It has multiple steps in the assembly of new virus particle, each depending on a separate viral gene. Nine mutants have blocked assembly at high temperature (restrictive conditions), yet assemble infectious virus at low temperature (permissive). The table below shows the results when the viruses are used to co-infect cells under permissive conditions, and the resulting supernatants used to infect cells under permissive conditions (where + indicates plaque formation): 1 2 3 4 5 6 7 8 9 0 + + + 0 0 + + 8 + + 0 + + + + 7 + 0 + 0 + + 6 0 + + + 0 5 0 + + + 4 + + + 3 + + 2 + 1 a) How many genes are involved, and which mutants have defects in the same gene? b) How would one alter the experiment to map the mutations (25 word limit; you must be clear and succinct)? A B C D E F G H I 0 0 0 + 0 + 0 0 H + + + + 0 + + G 0 0 0 + + + F + + + + 0 E + + 0 + D + 0 + C 0 0 B + A B C D E F G H I Biol223_Smith_2007-2008Spring_FINAL 5 June 2008 PAGE 6 of 6 ANSWER PAGE YOUR AUB ID___________________YOUR NAME_______________________ Question 1 for 16 points pair 1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16 WC # Question 2 for 16 points dNTPs added dATP dATP,+dCTP dATP+dCTP+dGTP all dNTPs DNA pol I DNA pol III Question 3 for 10 points Question 4 for 16 points Question 5 for 16 points a b c Question 6 for 8 points a) III-4 b) IV-4 c) V-1 d) V-4 probability has phenotype A probability has single allele of x Question 7 for 18 points 1 2 3 4 5 6 7 8 9 a) type (a, c) b) contributing chiasmata Question 8 for 50 points Question 9 for 50 points a) one quarter b) one half supplement strains that grow B D F G A B C D E F G H I a) b)
