Freddy Vartabedian
201203799
Assignment 2- EECE 310
PART A:
Figure 1-Half bridge circuit
a)
Vripple= 10.762-9.2887 = 1.4733V
b)
PIV = 22V
c)

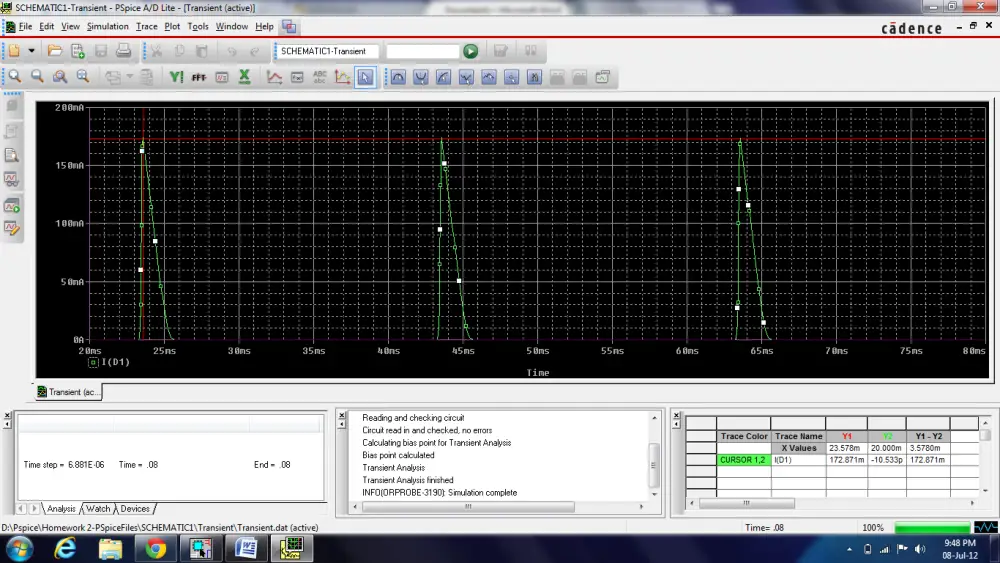

Peak Diode Current=172.87mA
T=20ms
Average= *(integral over 1 period)
= 10.38mA
PART B
Figure 2-Full Bridge circuit
a)
Vripple= 9.542-8.936=0.606V
b)
PIV=-10.756V
c)
Peak Diode Current=90.221mA
T=20ms
Average= *(integral over 1 period)
= 4.675mA
