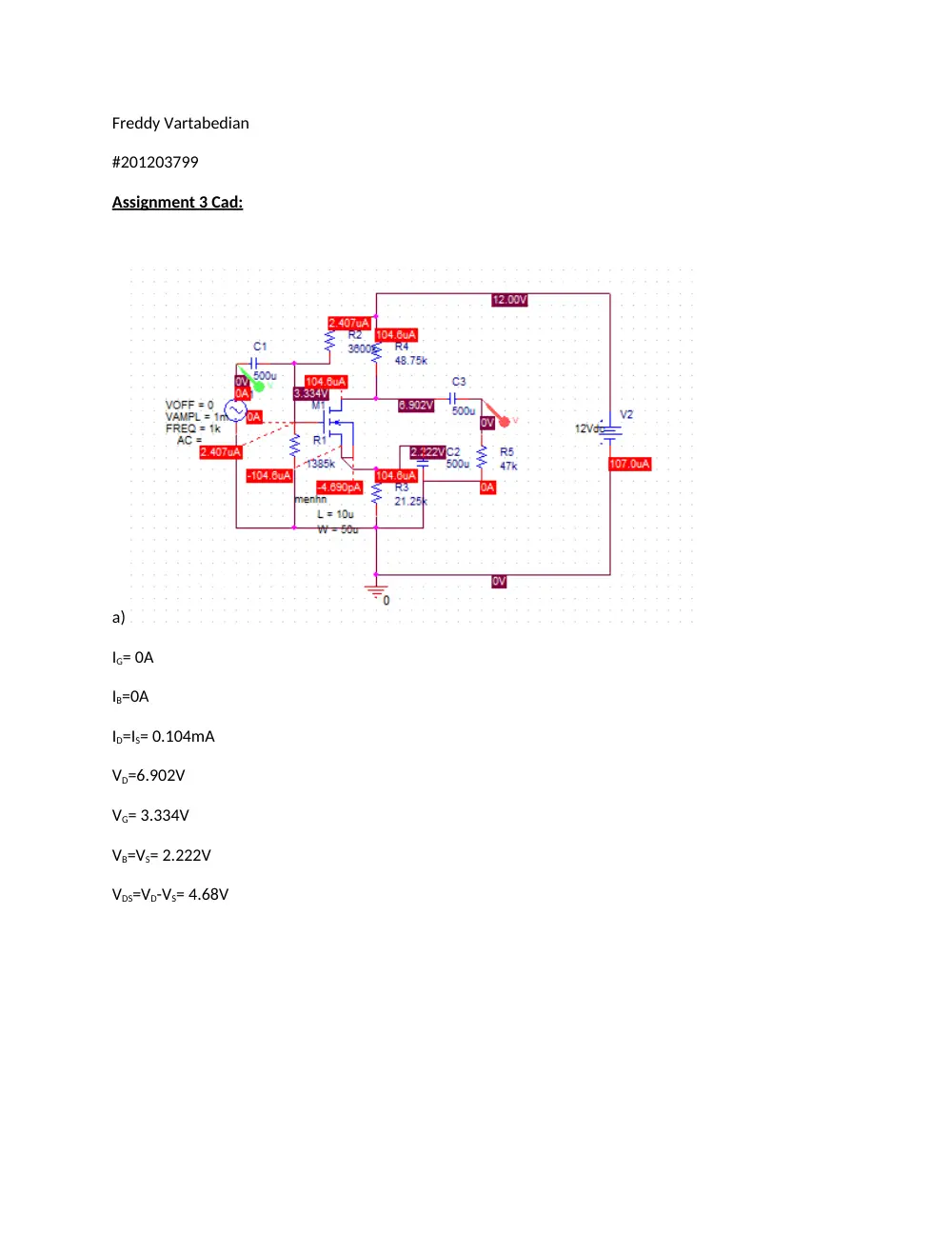

Freddy Vartabedian
#201203799
Assignment 3 Cad:
a)
IG= 0A
IB=0A
ID=IS= 0.104mA
VD=6.902V
VG= 3.334V
VB=VS= 2.222V
VDS=VD-VS= 4.68V

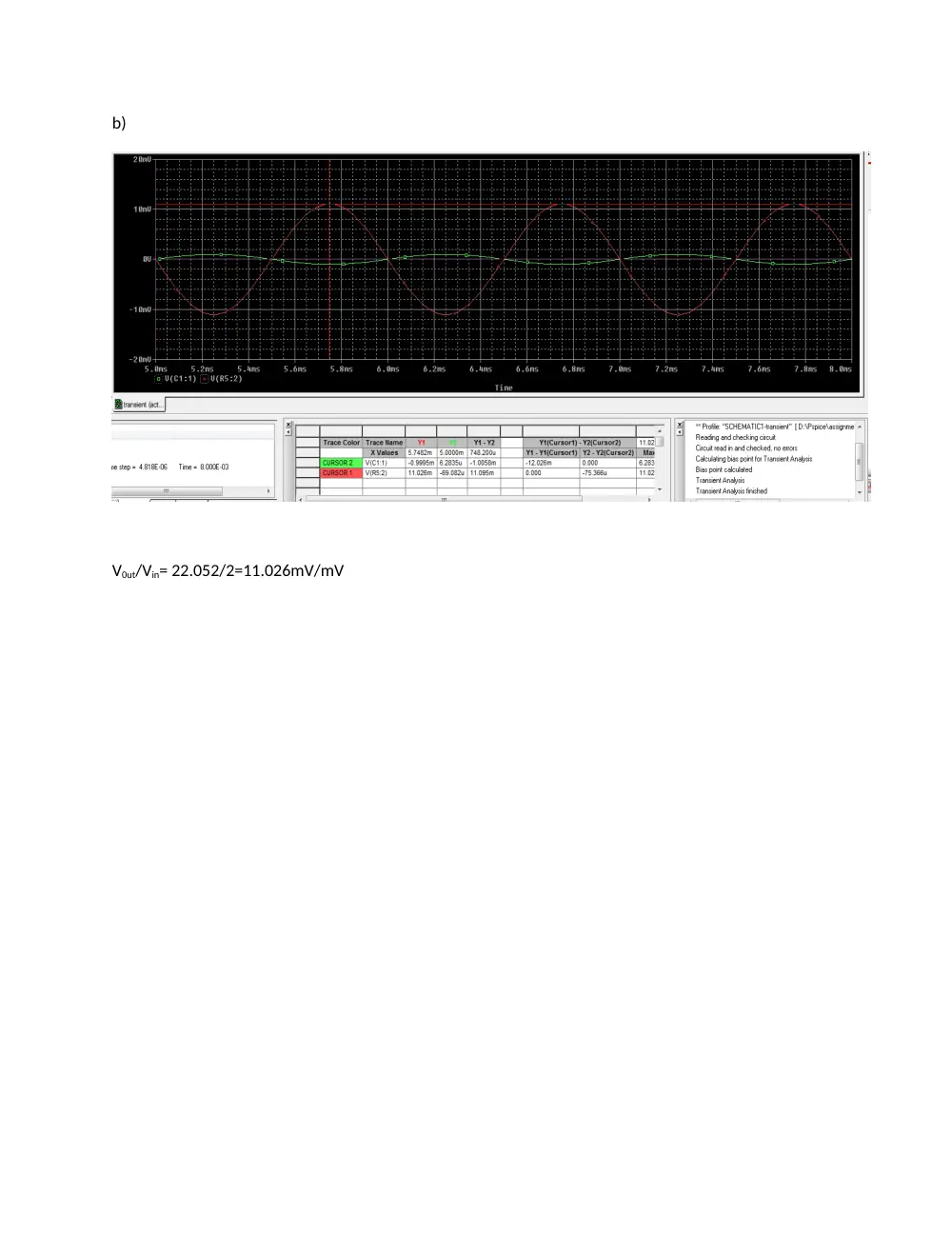

b)
V0ut/Vin= 22.052/2=11.026mV/mV
