Classes Part II
1
!

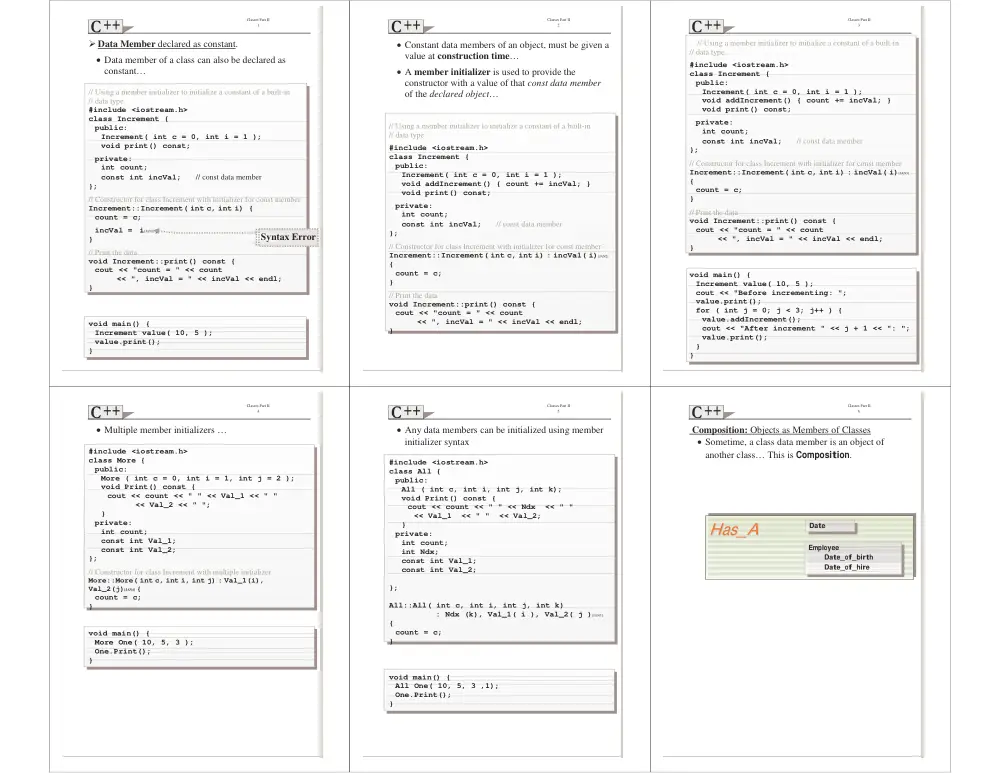

Data Member declared as constant.
• Data member of a class can also be declared as
constant…
// Using a member initializer to initialize a constant of a built-in
// data type.
#include <iostream.h>
class Increment {
public:
Increment( int c = 0, int i = 1 );
void print() const;
private:
int count;
const int incVal; // const data member
};
// Constructor for class Increment with initializer for const member
Increment::Increment( int c, int i) {
count = c;
incVal = i[JAN1];
}
// Print the data
void Increment::print() const {
cout << "count = " << count
<< ", incVal = " << incVal << endl;
}
void main() {
Increment value( 10, 5 );
value.print();
}
Syntax Error
Classes Part II
2
• Constant data members of an object, must be given a
value at construction time…
• A member initializer is used to provide the
constructor with a value of that const data member
of the declared object…
// Using a member initializer to initialize a constant of a built-in
// data type.
#include <iostream.h>
class Increment {
public:
Increment( int c = 0, int i = 1 );
void addIncrement() { count += incVal; }
void print() const;
private:
int count;
const int incVal; // const data member
};
// Constructor for class Increment with initializer for const member
Increment::Increment( int c, int i) : incVal( i)[JAN2]
{
count = c;
}
// Print the data
void Increment::print() const {
cout << "count = " << count
<< ", incVal = " << incVal << endl;
}
Classes Part II
3
// Using a member initializer to initialize a constant of a built-in
// data type.
#include <iostream.h>
class Increment {
public:
Increment( int c = 0, int i = 1 );
void addIncrement() { count += incVal; }
void print() const;
private:
int count;
const int incVal; // const data member
};
// Constructor for class Increment with initializer for const member
Increment::Increment( int c, int i) : incVal( i)[JAN3]
{
count = c;
}
// Print the data
void Increment::print() const {
cout << "count = " << count
<< ", incVal = " << incVal << endl;
}
void main() {
Increment value( 10, 5 );
cout << "Before incrementing: ";
value.print();
for ( int j = 0; j < 3; j++ ) {
value.addIncrement();
cout << "After increment " << j + 1 << ": ";
value.print();
}
}
Classes Part II
4
• Multiple member initializers …
#include <iostream.h>
class More {
public:
More ( int c = 0, int i = 1, int j = 2 );
void Print() const {
cout << count << " " << Val_1 << " "
<< Val_2 << " ";
}
private:
int count;
const int Val_1;
const int Val_2;
};
// Constructor for class Increment with multiple initializer.
More::More( int c, int i, int j) : Val_1(i),
Val_2(j)[JAN4] {
count = c;
}
void main() {
More One( 10, 5, 3 );
One.Print();
}
Classes Part II
5
• Any data members can be initialized using member
initializer syntax
#include <iostream.h>
class All {
public:
All ( int c, int i, int j, int k);
void Print() const {
cout << count << " " << Ndx << " "
<< Val_1 << " " << Val_2;
}
private:
int count;
int Ndx;
const int Val_1;
const int Val_2;
};
All::All( int c, int i, int j, int k)
: Ndx (k), Val_1( i ), Val_2( j )[JAN5]
{
count = c;
}
void main() {
All One( 10, 5, 3 ,1);
One.Print();
}
Classes Part II
6
Composition: Objects as Members of Classes
• Sometime, a class data member is an object of
another class… This is Composition.
H
Haass__AA
Employee
Date_of_birth
Date_of_hire
Date
Classes Part II
7

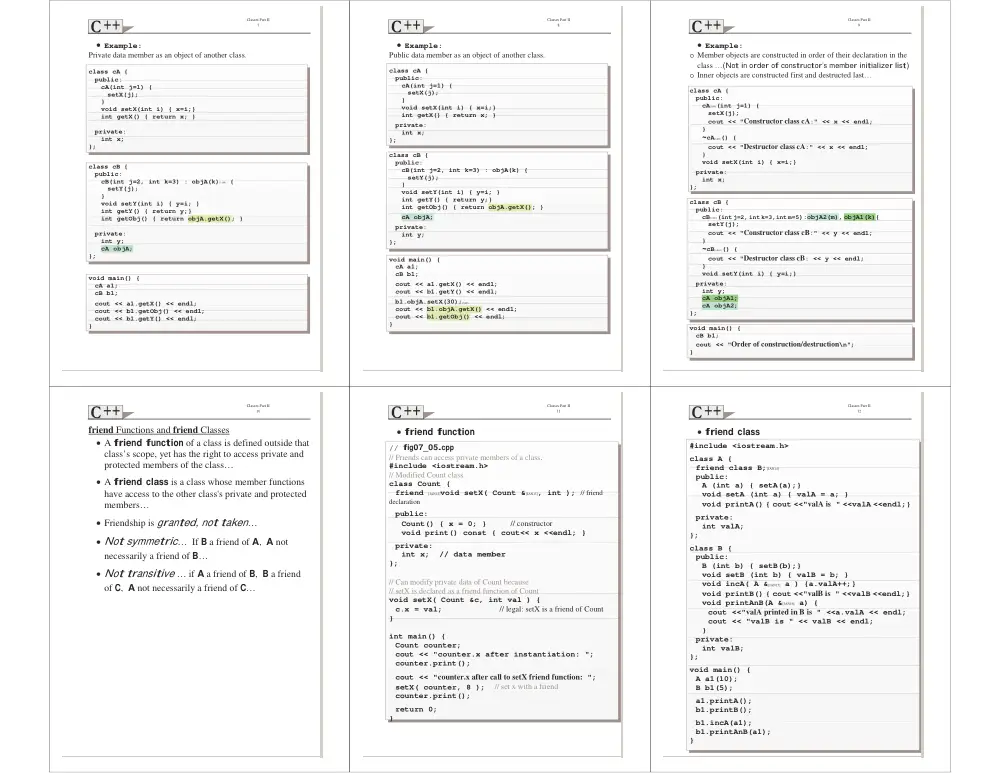

• Example:
Private data member as an object of another class.
class cA {
public:
cA(int j=1) {
setX(j);
}
void setX(int i) { x=i;}
int getX() { return x; }
private:
int x;
};
class cB {
public:
cB(int j=2, int k=3) : objA(k)[JAN6] {
setY(j);
}
void setY(int i) { y=i; }
int getY() { return y;}
int getObj() { return objA.getX(); }
private:
int y;
cA objA;
};
void main() {
cA a1;
cB b1;
cout << a1.getX() << endl;
cout << b1.getObj() << endl;
cout << b1.getY() << endl;
}
Classes Part II
8
• Example:
Public data member as an object of another class.
class cA {
public:
cA(int j=1) {
setX(j);
}
void setX(int i) { x=i;}
int getX() { return x; }
private:
int x;
};
class cB {
public:
cB(int j=2, int k=3) : objA(k) {
setY(j);
}
void setY(int i) { y=i; }
int getY() { return y;}
int getObj() { return objA.getX(); }
cA objA;
private:
int y;
};
void main() {
cA a1;
cB b1;
cout << a1.getX() << endl;
cout << b1.getY() << endl;
b1.objA.setX(30);[JAN7]
cout << b1.objA.getX() << endl;
cout << b1.getObj() << endl;
}
Classes Part II
9
• Example:
o Member objects are constructed in order of their declaration in the
class …(Not in order of constructor’s member initializer list)
o Inner objects are constructed first and destructed last…
class cA {
public:
cA[JAN8](int j=1) {
setX(j);
cout << "Constructor class cA:" << x << endl;
}
~cA[JAN9]() {
cout << "Destructor class cA:" << x << endl;
}
void setX(int i) { x=i;}
private:
int x;
};
class cB {
public:
cB[JAN10](int j=2, int k=3,int m=5):objA2(m), objA1(k){
setY(j);
cout << "Constructor class cB:" << y << endl;
}
~cB[JAN11]() {
cout << "Destructor class cB: << y << endl;
}
void setY(int i) { y=i;}
private:
int y;
cA objA1;
cA objA2;
};
void main() {
cB b1;
cout << "Order of construction/destruction\n";
}
Classes Part II
10
friend Functions and friend Classes
• A friend function of a class is defined outside that
class’s scope, yet has the right to access private and
protected members of the class…
• A friend class is a class whose member functions
have access to the other class's private and protected
members…
• Friendship is granted, not taken…
• Not symmetric… If B a friend of A, A not
necessarily a friend of B…
• Not transitive … if A a friend of B, B a friend
of C, A not necessarily a friend of C…
Classes Part II
11
• friend function
// fig07_05.cpp
// Friends can access private members of a class.
#include <iostream.h>
// Modified Count class
class Count {
friend [JAN12]void setX( Count &[JAN13], int ); // friend
declaration
public:
Count() { x = 0; } // constructor
void print() const { cout<< x <<endl; }
private:
int x; // data member
};
// Can modify private data of Count because
// setX is declared as a friend function of Count
void setX( Count &c, int val ) {
c.x = val;
// legal: setX is a friend of Count
}
int main() {
Count counter;
cout << "counter.x after instantiation: ";
counter.print();
cout << "counter.x after call to setX friend function: ";
setX( counter, 8 ); // set x with a friend
counter.print();
return 0;
}
Classes Part II
12
• friend class
#include <iostream.h>
class A {
friend class B;[JAN14]
public:
A (int a) { setA(a);}
void setA (int a) { valA = a; }
void printA() { cout <<"valA is " <<valA <<endl;}
private:
int valA;
};
class B {
public:
B (int b) { setB(b);}
void setB (int b) { valB = b; }
void incA( A &[JAN15] a ) {a.valA++;}
void printB() { cout <<"valB is " <<valB <<endl;}
void printAnB(A &[JAN16] a) {
cout <<"valA printed in B is " <<a.valA << endl;
cout << "valB is " << valB << endl;
}
private:
int valB;
};
void main() {
A a1(10);
B b1(5);
a1.printA();
b1.printB();
b1.incA(a1);
b1.printAnB(a1);
}
Classes Part II
13

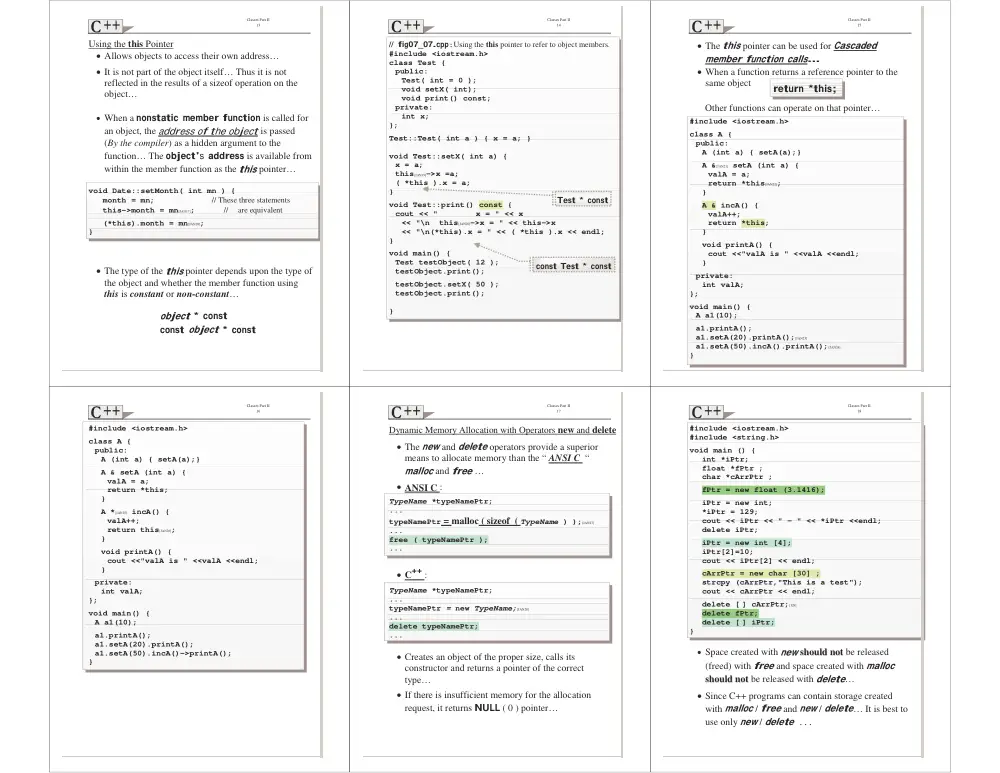

Using the this Pointer
• Allows objects to access their own address…
• It is not part of the object itself… Thus it is not
reflected in the results of a sizeof operation on the
object…
• When a nonstatic member function is called for
an object, the address of the object is passed
(By the compiler) as a hidden argument to the
function… The object's address is available from
within the member function as the this pointer…
void Date::setMonth( int mn ) {
month = mn; // These three statements
this->month = mn[JAN17]; // are equivalent
(*this).month = mn[JAN18];
}
• The type of the this pointer depends upon the type of
the object and whether the member function using
this is constant or non-constant…
object * const
const object * const
Classes Part II
14
// fig07_07.cpp:Using the this pointer to refer to object members.
#include <iostream.h>
class Test {
public:
Test( int = 0 );
void setX( int);
void print() const;
private:
int x;
};
Test::Test( int a ) { x = a; }
void Test::setX( int a) {
x = a;
this[JAN19]->x =a;
( *this ).x = a;
}
void Test::print() const {
cout << " x = " << x
<< "\n this[JAN20]->x = " << this->x
<< "\n(*this).x = " << ( *this ).x << endl;
}
void main() {
Test testObject( 12 );
testObject.print();
testObject.setX( 50 );
testObject.print();
}
const Test * const
Test * const
Classes Part II
15
return *this;
• The this pointer can be used for Cascaded
member function calls...
• When a function returns a reference pointer to the
same object
Other functions can operate on that pointer…
#include <iostream.h>
class A {
public:
A (int a) { setA(a);}
A &[JAN21] setA (int a) {
valA = a;
return *this[JAN22];
}
A & incA() {
valA++;
return *this;
}
void printA() {
cout <<"valA is " <<valA <<endl;
}
private:
int valA;
};
void main() {
A a1(10);
a1.printA();
a1.setA(20).printA();[JAN23]
a1.setA(50).incA().printA();[JAN24]
}
Classes Part II
16
#include <iostream.h>
class A {
public:
A (int a) { setA(a);}
A & setA (int a) {
valA = a;
return *this;
}
A *[JAN25] incA() {
valA++;
return this[JAN26];
}
void printA() {
cout <<"valA is " <<valA <<endl;
}
private:
int valA;
};
void main() {
A a1(10);
a1.printA();
a1.setA(20).printA();
a1.setA(50).incA()->printA();
}
Classes Part II
17
Dynamic Memory Allocation with Operators new and delete
• The new and delete operators provide a superior
means to allocate memory than the “ ANSI C “
malloc and free …
• ANSI C :
TypeName *typeNamePtr;
...
typeNamePtr = malloc ( sizeof ( TypeName ) );[JAN27]
...
free ( typeNamePtr );
...
• C++ :
TypeName *typeNamePtr;
...
typeNamePtr = new TypeName;[JAN28]
...
delete typeNamePtr;
...
• Creates an object of the proper size, calls its
constructor and returns a pointer of the correct
type…
• If there is insufficient memory for the allocation
request, it returns NULL ( 0 ) pointer…
Classes Part II
18
#include <iostream.h>
#include <string.h>
void main () {
int *iPtr;
float *fPtr ;
char *cArrPtr ;
fPtr = new float (3.1416);
iPtr = new int;
*iPtr = 129;
cout << iPtr << " - " << *iPtr <<endl;
delete iPtr;
iPtr = new int [4];
iPtr[2]=10;
cout << iPtr[2] << endl;
cArrPtr = new char [30] ;
strcpy (cArrPtr,"This is a test");
cout << cArrPtr << endl;
delete [ ] cArrPtr;[J29]
delete fPtr;
delete [ ] iPtr;
}
• Space created with new sshhoouulldd nnoott be released
(freed) with free and space created with malloc
sshhoouulldd nnoott be released with delete…
• Since C++ programs can contain storage created
with malloc / free and new / delete… It is best to
use only new / delete ...
Classes Part II
19

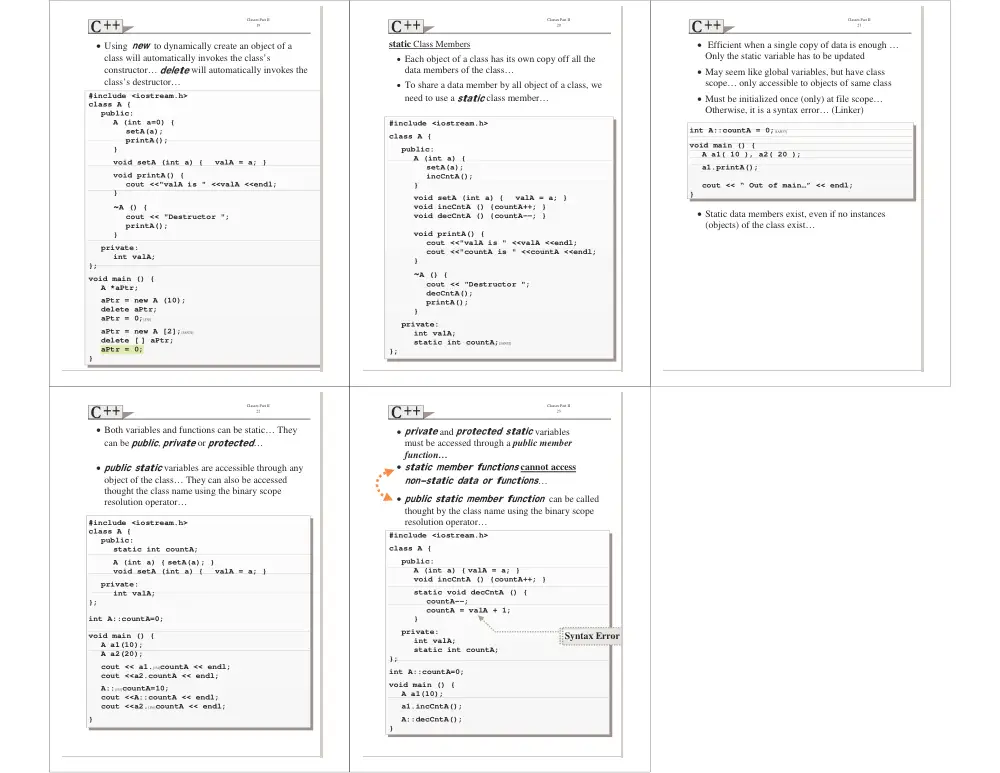

• Using new to dynamically create an object of a
class will automatically invokes the class’s
constructor… delete will automatically invokes the
class’s destructor…
#include <iostream.h>
class A {
public:
A (int a=0) {
setA(a);
printA();
}
void setA (int a) {
valA = a; }
void printA() {
cout <<"valA is " <<valA <<endl;
}
~A () {
cout << "Destructor ";
printA();
}
private:
int valA;
};
void main () {
A *aPtr;
aPtr = new A (10);
delete aPtr;
aPtr = 0;[J30]
aPtr = new A [2];[JAN31]
delete [ ] aPtr;
aPtr = 0;
}
Classes Part II
20
static Class Members
• Each object of a class has its own copy off all the
data members of the class…
• To share a data member by all object of a class, we
need to use a static class member…
#include <iostream.h>
class A {
public:
A (int a) {
setA(a);
incCntA();
}
void setA (int a) {
valA = a; }
void incCntA () {countA++; }
void decCntA () {countA--; }
void printA() {
cout <<"valA is " <<valA <<endl;
cout <<"countA is " <<countA <<endl;
}
~A () {
cout << "Destructor ";
decCntA();
printA();
}
private:
int valA;
static int countA;[JAN32]
};
Classes Part II
21
• Efficient when a single copy of data is enough …
Only the static variable has to be updated
• May seem like global variables, but have class
scope… only accessible to objects of same class
• Must be initialized once (only) at file scope…
Otherwise, it is a syntax error… (Linker)
int A::countA = 0;[JAN33]
void main () {
A a1( 10 ), a2( 20 );
a1.printA();
cout << “ Out of main…” << endl;
}
• Static data members exist, even if no instances
(objects) of the class exist…
Classes Part II
22
• Both variables and functions can be static… They
can be public, private or protected…
• public static variables are accessible through any
object of the class… They can also be accessed
thought the class name using the binary scope
resolution operator…
#include <iostream.h>
class A {
public:
static int countA;
A (int a) { setA(a); }
void setA (int a) {
valA = a; }
private:
int valA;
};
int A::countA=0;
void main () {
A a1(10);
A a2(20);
cout << a1.[J34]countA << endl;
cout <<a2.countA << endl;
A::[J35]countA=10;
cout <<A::countA << endl;
cout <<a2.[J36]countA << endl;
}
Classes Part II
23
• private and protected static variables
must be accessed through a public member
function…
• static member functions cannot access
non-static data or functions…
• public static member function can be called
thought by the class name using the binary scope
resolution operator…
#include <iostream.h>
class A {
public:
A (int a) { valA = a; }
void incCntA () {countA++; }
static void decCntA () {
countA--;
countA = valA + 1;
}
private:
int valA;
static int countA;
};
int A::countA=0;
void main () {
A a1(10);
a1.incCntA();
A::decCntA();
}
Syntax Error
