Exercice #6
1
1 ) Create Car class with the following data members:
char name[20]
Car’s brand name.
( 20 characters default to empty )
bool autoTrans
Transmission type.
( True for automatic transmission. default to false )
float liter100Km
Fuel Consumption.
( Default to 0.0 )
int weight
Car weight.
( Default to 0 )
and the following member functions:
bool isAuto();
Function that returns the value of data member “autoTrans”
float getLper100Km();
Function that returns the value of data member “liter100Km”
void setCar(char[], bool, float, int);
Function that sets the data members.
1st argument is the name of the car.
2nd argument is the automatic transmission (true/false).
3rd argument fuel consumption.
4th argument weight of the car.
This function should include the following integrity check:
1. “name” is less than 19 characters.
2. “autoTrans” is only true/false.
3. “liter100Km” is a positive number.
4. “weight” is a positive number.
void printCar();
Function that prints the value data members in the following format.
2 ) Create class Rectangle .The class has attributes length and width , each of which defaults
to 1.0. It has member functions that calculate the perimeter and the area of the rectangle. It
has a set and get function for both data members. It should also verify that the values of both
data members is larger than 0.0 and less than 20.0.
Brand name: MGB
--------------------
Transmission: Manual
Liters / 100 Km: 6.3
Wieght: 1000
Exercice #6-2
1

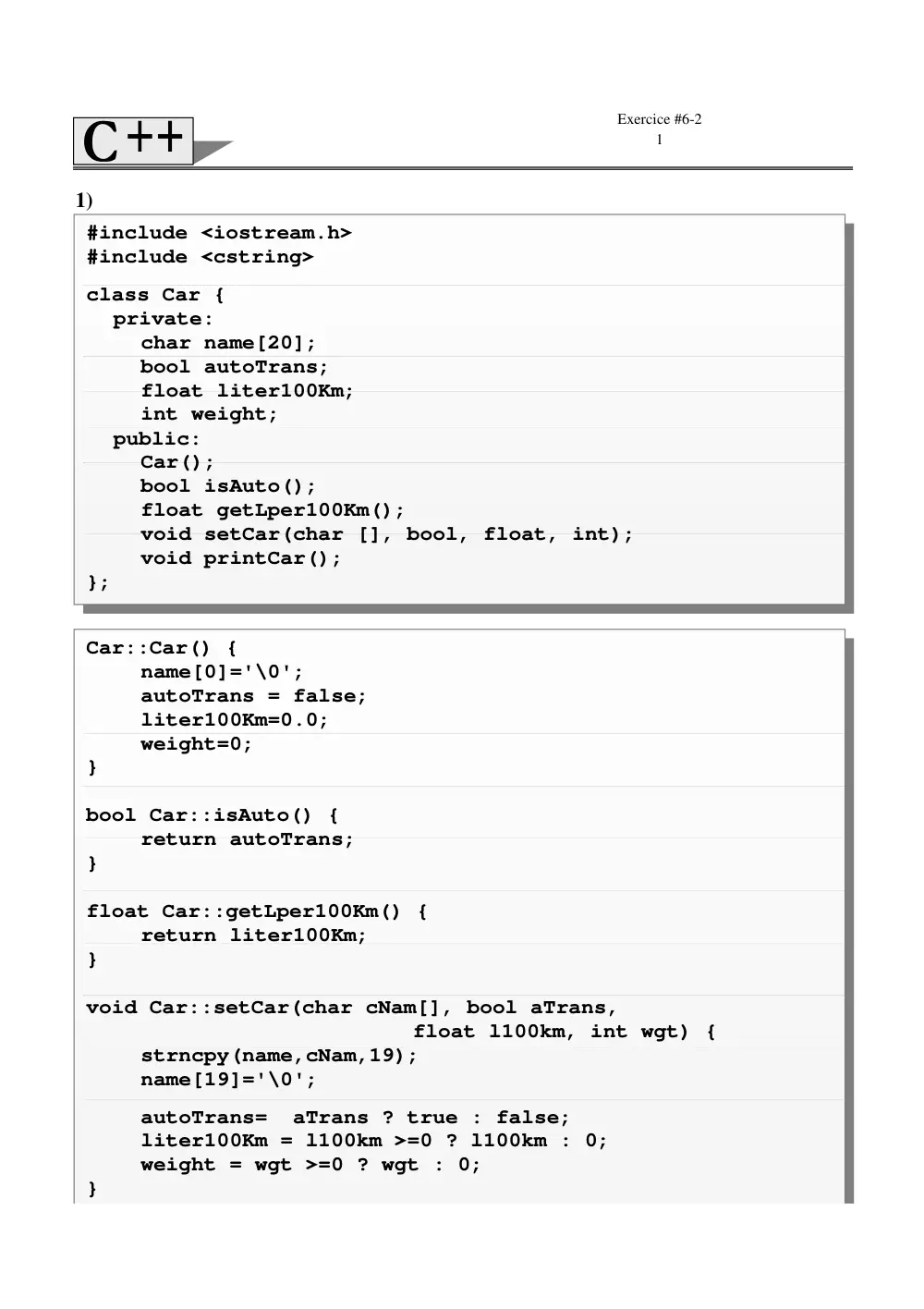

#include <iostream.h>
#include <cstring>
class Car {
private:
char name[20];
bool autoTrans;
float liter100Km;
int weight;
public:
Car();
bool isAuto();
float getLper100Km();
void setCar(char [], bool, float, int);
void printCar();
};
Car::Car() {
name[0]='\0';
autoTrans = false;
liter100Km=0.0;
weight=0;
}
bool Car::isAuto() {
return autoTrans;
}
float Car::getLper100Km() {
return liter100Km;
}
void Car::setCar(char cNam[], bool aTrans,
float l100km, int wgt) {
strncpy(name,cNam,19);
name[19]='\0';
autoTrans= aTrans ? true : false;
liter100Km = l100km >=0 ? l100km : 0;
weight = wgt >=0 ? wgt : 0;
}
1)
Exercice #6-2
2

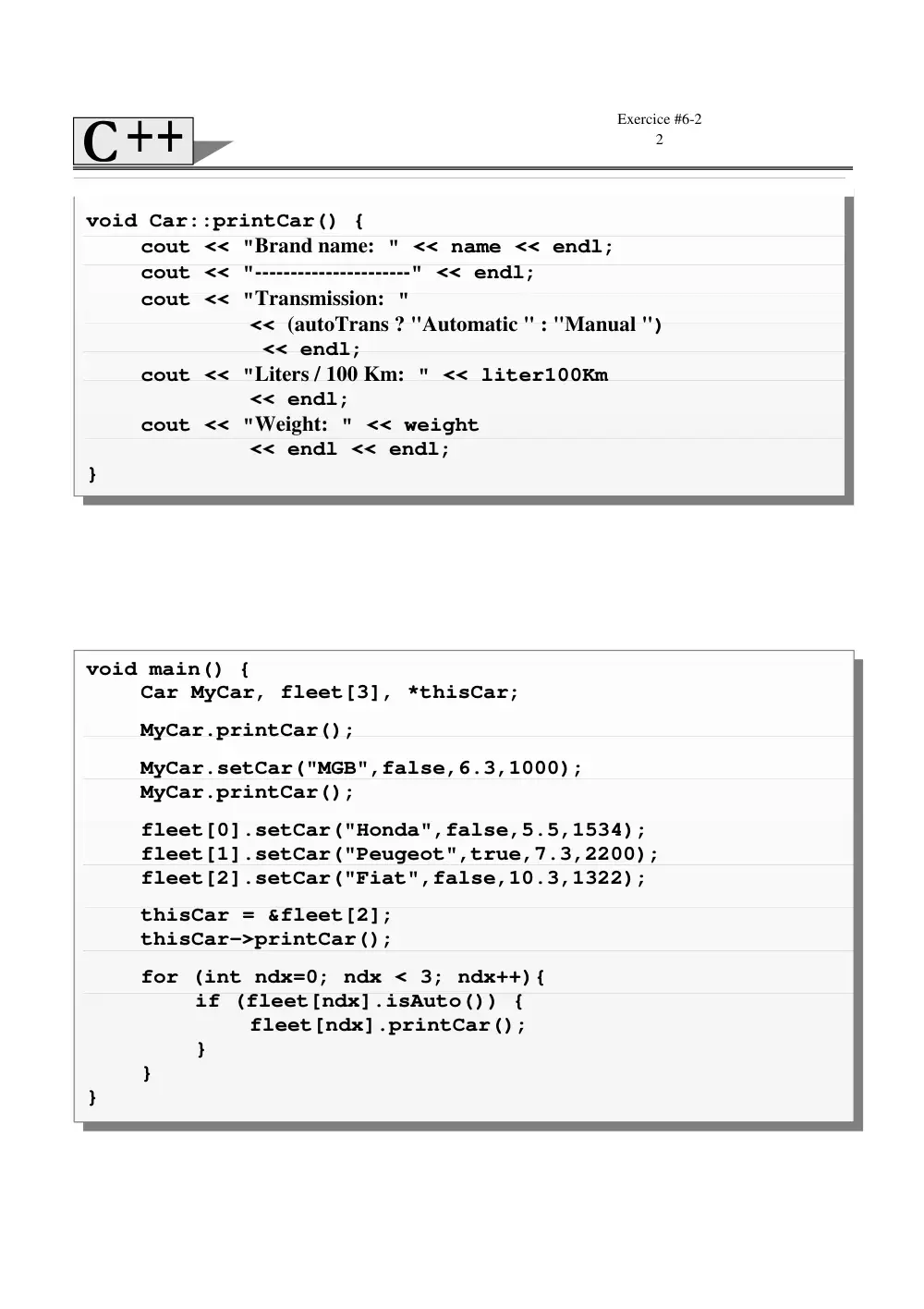

void Car::printCar() {
cout << "Brand name: " << name << endl;
cout << "----------------------" << endl;
cout << "Transmission: "
<< (autoTrans ? "Automatic " : "Manual ")
<< endl;
cout << "Liters / 100 Km: " << liter100Km
<< endl;
cout << "Weight: " << weight
<< endl << endl;
}
void main() {
Car MyCar, fleet[3], *thisCar;
MyCar.printCar();
MyCar.setCar("MGB",false,6.3,1000);
MyCar.printCar();
fleet[0].setCar("Honda",false,5.5,1534);
fleet[1].setCar("Peugeot",true,7.3,2200);
fleet[2].setCar("Fiat",false,10.3,1322);
thisCar = &fleet[2];
thisCar->printCar();
for (int ndx=0; ndx < 3; ndx++){
if (fleet[ndx].isAuto()) {
fleet[ndx].printCar();
}
}
}
Exercice #6-2
3

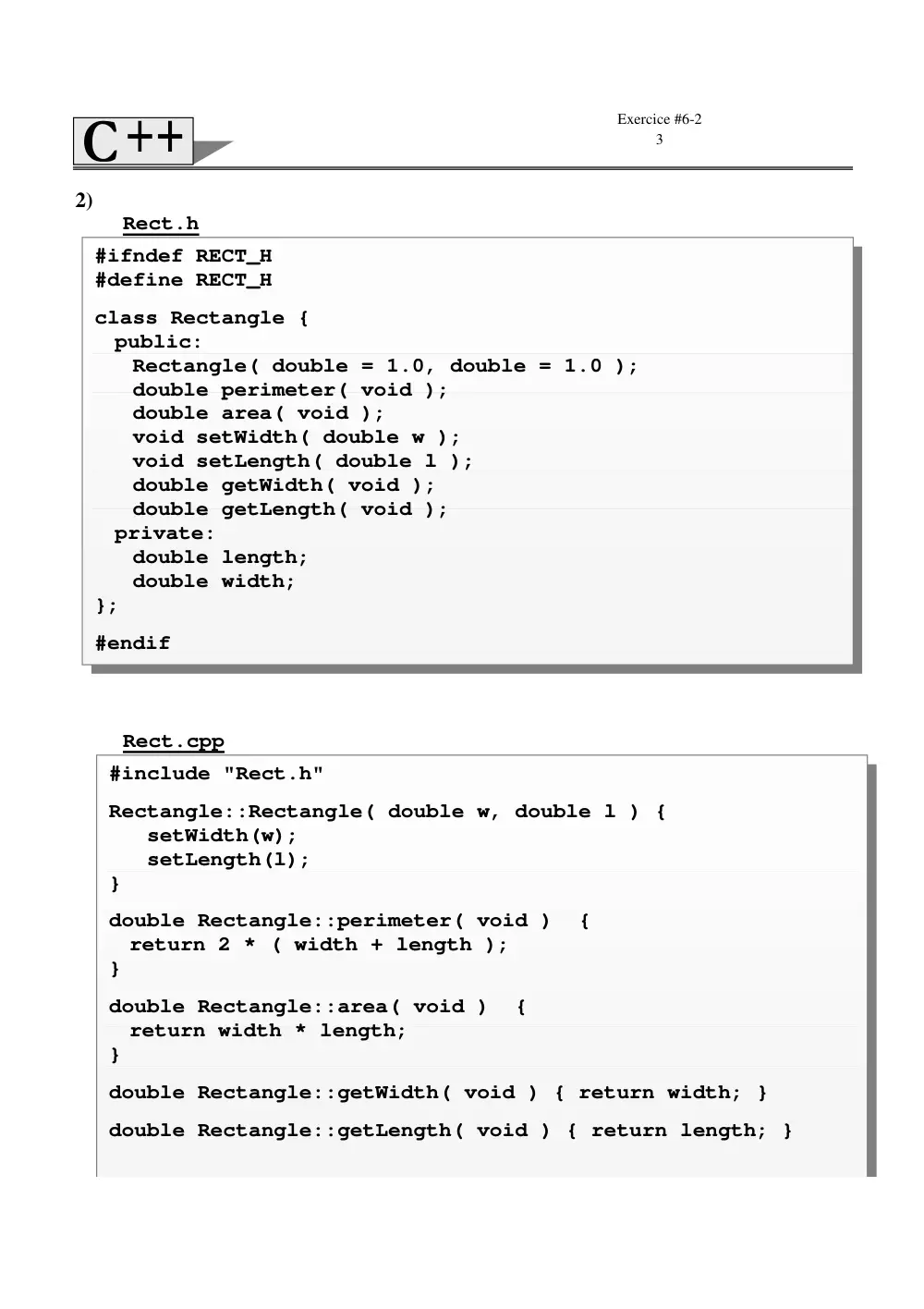

#ifndef RECT_H
#define RECT_H
class Rectangle {
public:
Rectangle( double = 1.0, double = 1.0 );
double perimeter( void );
double area( void );
void setWidth( double w );
void setLength( double l );
double getWidth( void );
double getLength( void );
private:
double length;
double width;
};
#endif
#include "Rect.h"
Rectangle::Rectangle( double w, double l ) {
setWidth(w);
setLength(l);
}
double Rectangle::perimeter( void ) {
return 2 * ( width + length );
}
double Rectangle::area( void ) {
return width * length;
}
double Rectangle::getWidth( void ) { return width; }
double Rectangle::getLength( void ) { return length; }
2)
Rect.h
Rect.cpp
Exercice #6-2
4

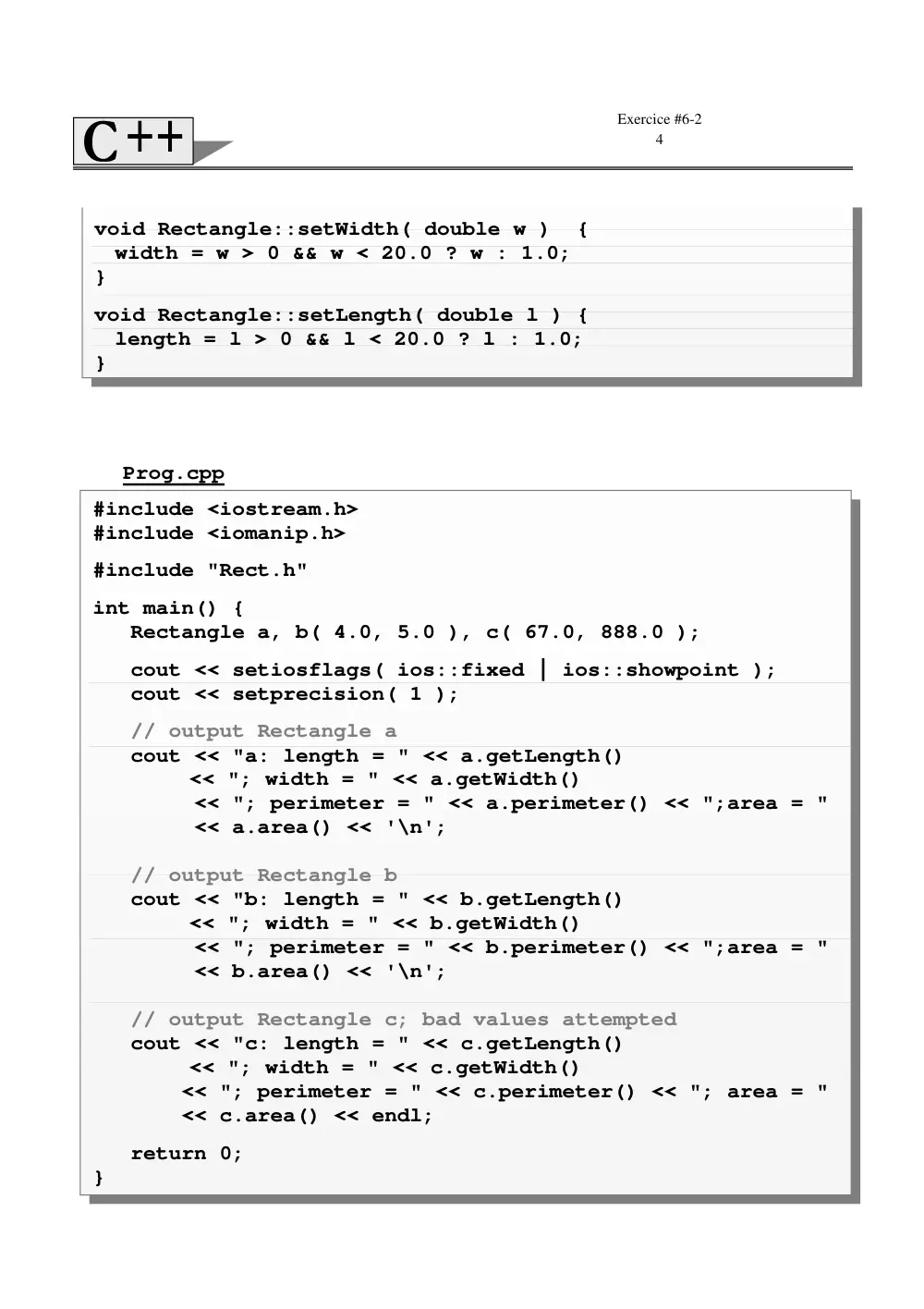

void Rectangle::setWidth( double w ) {
width = w > 0 && w < 20.0 ? w : 1.0;
}
void Rectangle::setLength( double l ) {
length = l > 0 && l < 20.0 ? l : 1.0;
}
#include <iostream.h>
#include <iomanip.h>
#include "Rect.h"
int main() {
Rectangle a, b( 4.0, 5.0 ), c( 67.0, 888.0 );
cout << setiosflags( ios::fixed | ios::showpoint );
cout << setprecision( 1 );
// output Rectangle a
cout << "a: length = " << a.getLength()
<< "; width = " << a.getWidth()
<< "; perimeter = " << a.perimeter() << ";area = "
<< a.area() << '\n';
// output Rectangle b
cout << "b: length = " << b.getLength()
<< "; width = " << b.getWidth()
<< "; perimeter = " << b.perimeter() << ";area = "
<< b.area() << '\n';
// output Rectangle c; bad values attempted
cout << "c: length = " << c.getLength()
<< "; width = " << c.getWidth()
<< "; perimeter = " << c.perimeter() << "; area = "
<< c.area() << endl;
return 0;
}
Prog.cpp
