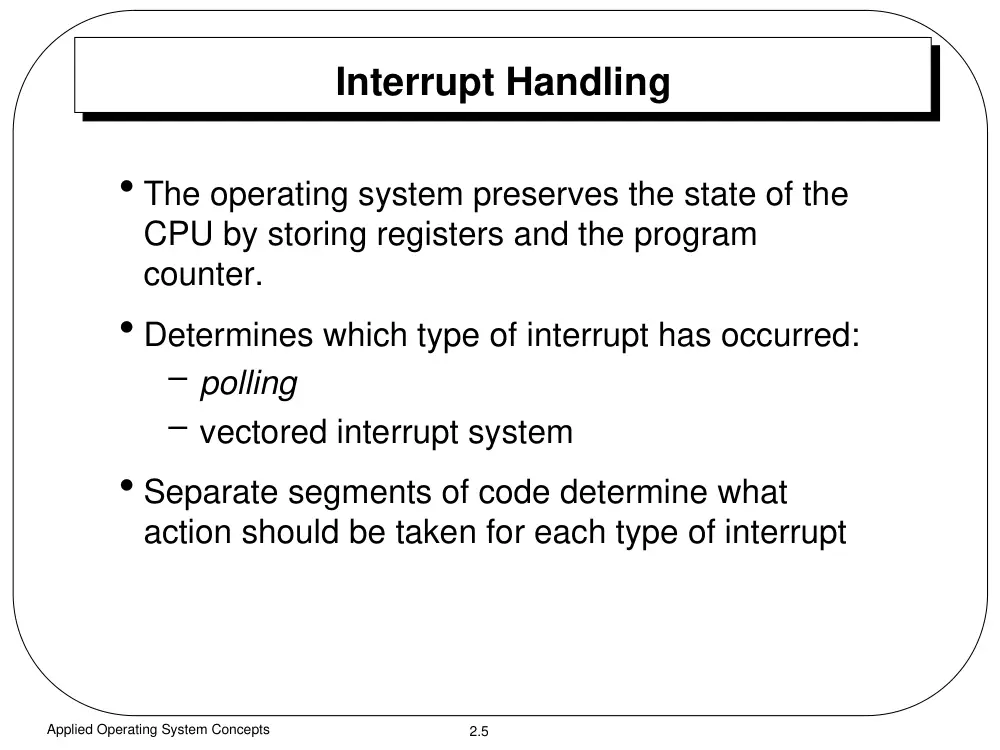

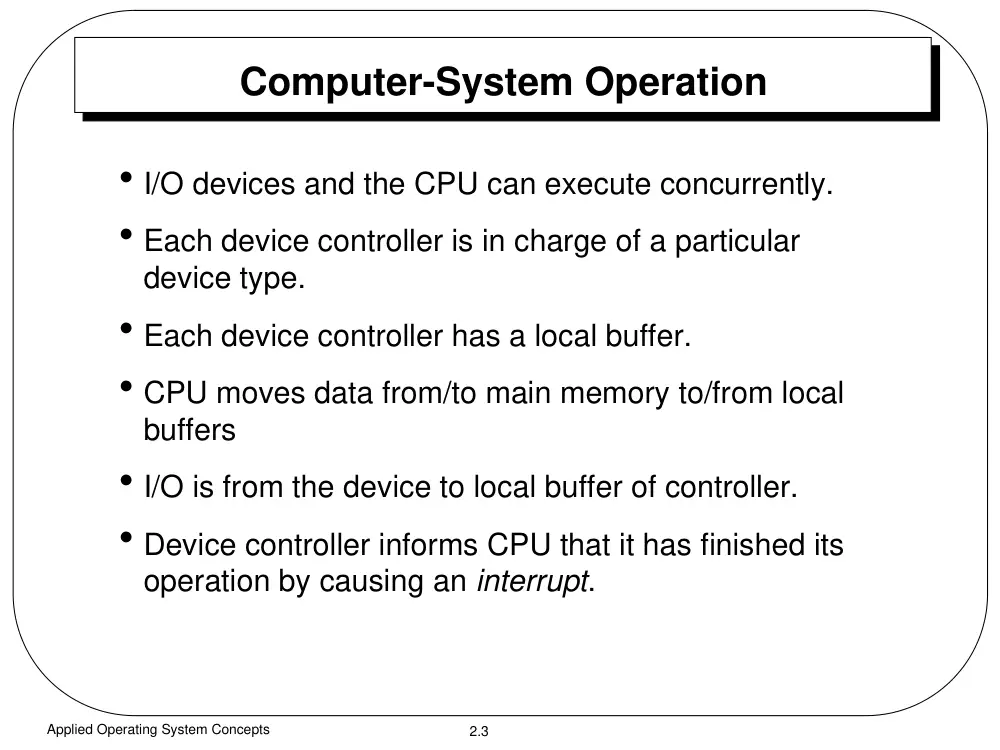

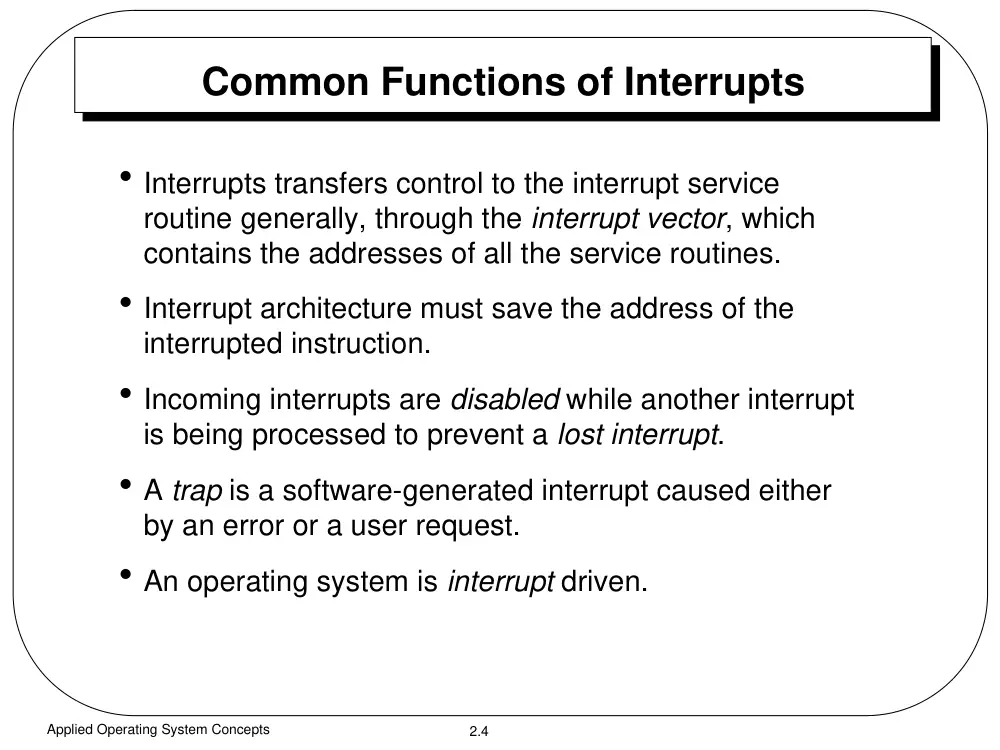

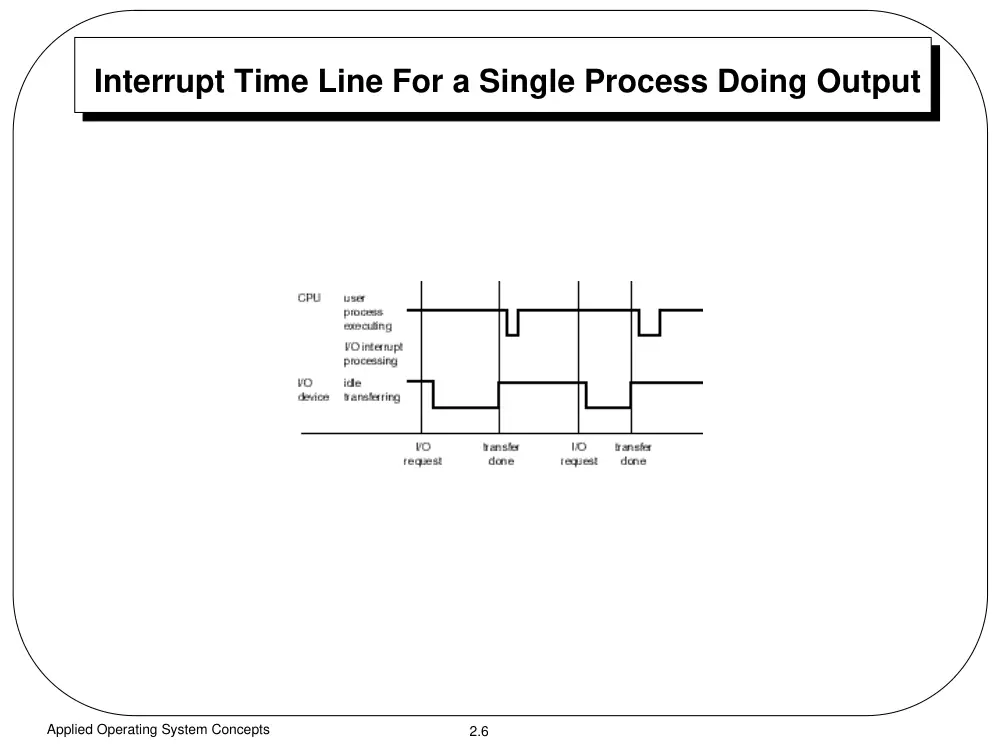

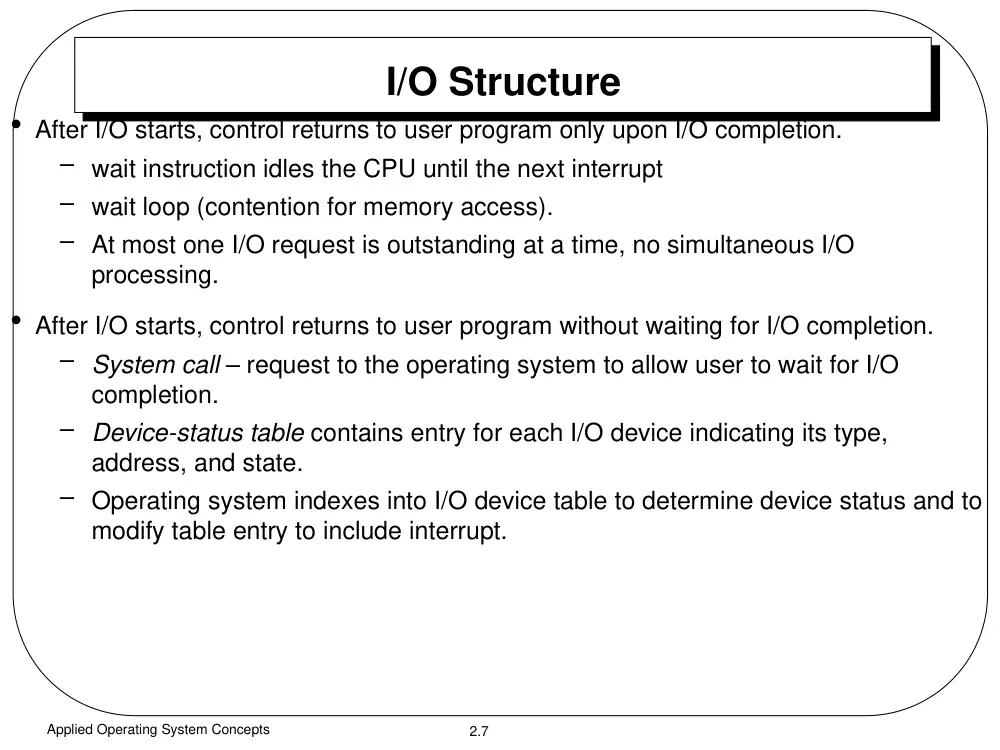

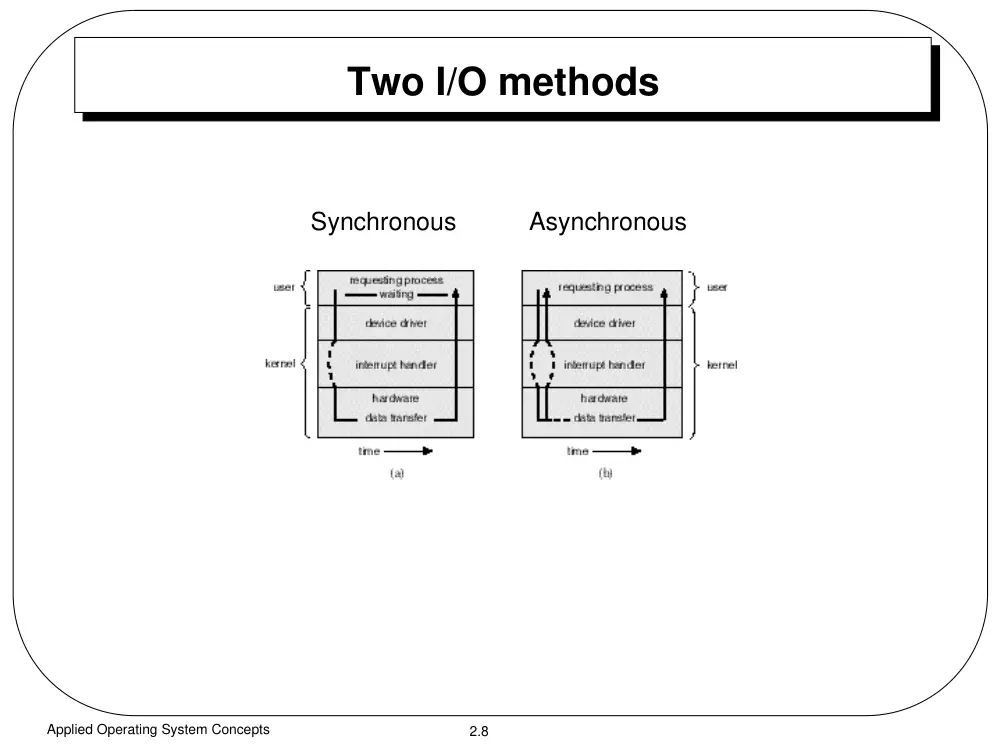

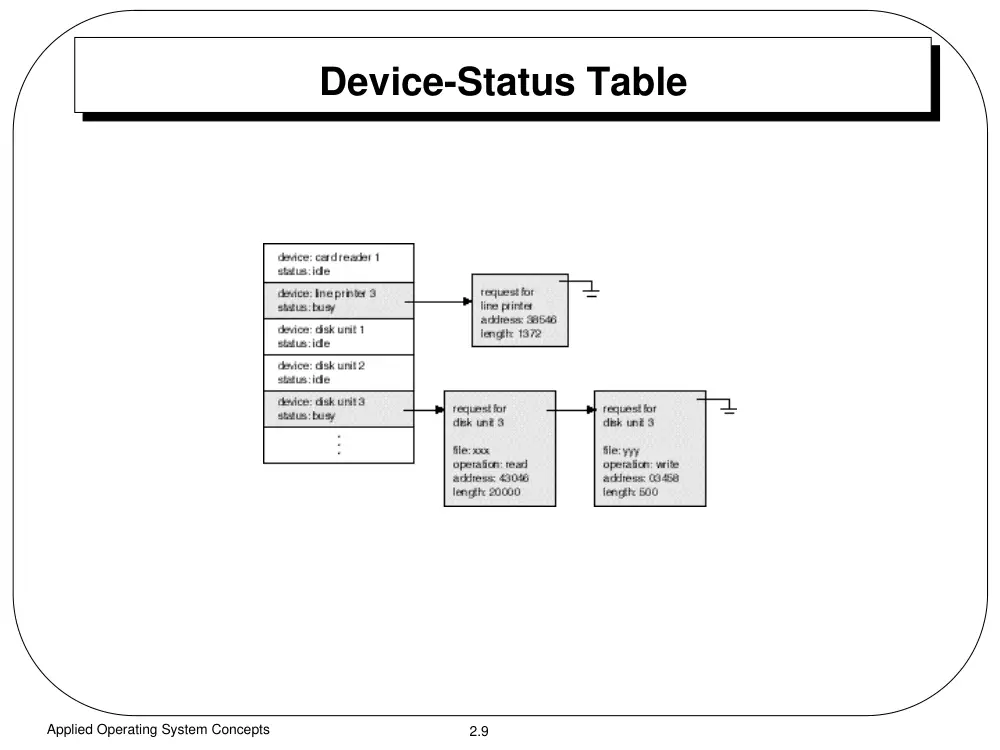

2.1 Applied Operating System Concepts Module 2: Computer-System Structures • Computer System Operation • I/O Structure • Storage Structure • Storage Hierarchy • Hardware Protection • General System Architecture 2.2 Applied Operating System Concepts Computer-System Architecture 2.3 Applied Operating System Concepts Computer-System Operation • I/O devices and the CPU can execute concurrently. • Each device controller is in charge of a particular device type. • Each device controller has a local buffer. • CPU moves data from/to main memory to/from local buffers • I/O is from the device to local buffer of controller. • Device controller informs CPU that it has finished its operation by causing an interrupt. 2.4 Applied Operating System Concepts Common Functions of Interrupts • Interrupts transfers control to the interrupt service routine generally, through the interrupt vector, which contains the addresses of all the service routines. • Interrupt architecture must save the address of the interrupted instruction. • Incoming interrupts are disabled while another interrupt is being processed to prevent a lost interrupt. • A trap is a software-generated interrupt caused either by an error or a user request. • An operating system is interrupt driven. 2.5 Applied Operating System Concepts Interrupt Handling • The operating system preserves the state of the CPU by storing registers and the program counter. • Determines which type of interrupt has occurred: – polling – vectored interrupt system • Separate segments of code determine what action should be taken for each type of interrupt 2.6 Applied Operating System Concepts Interrupt Time Line For a Single Process Doing Output 2.7 Applied Operating System Concepts I/O Structure • After I/O starts, control returns to user program only upon I/O completion. – wait instruction idles the CPU until the next interrupt – wait loop (contention for memory access). – At most one I/O request is outstanding at a time, no simultaneous I/O processing. • After I/O starts, control returns to user program without waiting for I/O completion. – System call – request to the operating system to allow user to wait for I/O completion. – Device-status table contains entry for each I/O device indicating its type, address, and state. – Operating system indexes into I/O device table to determine device status and to modify table entry to include interrupt. 2.8 Applied Operating System Concepts Two I/O methods Synchronous Asynchronous 2.9 Applied Operating System Concepts Device-Status Table 2.10 Applied Operating System Concepts Direct Memory Access (DMA) Structure • Used for high-speed I/O devices able to transmit information at close to memory speeds. • Device controller transfers blocks of data from buffer storage directly to main memory without CPU intervention. • Only one interrupt is generated per block, rather than the one interrupt per byte. 2.11 Applied Operating System Concepts Storage Structure • Main memory – only large storage media that the CPU can access directly. • Secondary storage – extension of main memory that provides large nonvolatile storage capacity. • Magnetic disks – rigid metal or glass platters covered with magnetic recording material – Disk surface is logically divided into tracks, which are subdivided into sectors. – The disk controller determines the logical interaction between the device and the computer. 2.12 Applied Operating System Concepts Moving-Head Disk Mechanism 2.13 Applied Operating System Concepts Storage Hierarchy • Storage systems organized in hierarchy. – Speed – cost – volatility • Caching – copying information into faster storage system; main memory can be viewed as a last cache for secondary storage. 2.14 Applied Operating System Concepts Storage-Device Hierarchy 2.15 Applied Operating System Concepts Hardware Protection • Dual-Mode Operation • I/O Protection • Memory Protection • CPU Protection 2.16 Applied Operating System Concepts Dual-Mode Operation • Sharing system resources requires operating system to ensure that an incorrect program cannot cause other programs to execute incorrectly. • Provide hardware support to differentiate between at least two modes of operations. 1.User mode – execution done on behalf of a user. 2.Monitor mode (also supervisor mode or system mode) – execution done on behalf of operating system. 2.17 Applied Operating System Concepts Dual-Mode Operation (Cont.) • Mode bit added to computer hardware to indicate the current mode: monitor (0) or user (1). • When an interrupt or fault occurs hardware switches to monitor mode. • Privileged instructions can be issued only in monitor mode. monitor user Interrupt/fault set user mode 2.18 Applied Operating System Concepts I/O Protection • All I/O instructions are privileged instructions. • Must ensure that a user program could never gain control of the computer in monitor mode (I.e., a user program that, as part of its execution, stores a new address in the interrupt vector). 2.19 Applied Operating System Concepts Memory Protection • Must provide memory protection at least for the interrupt vector and the interrupt service routines. • In order to have memory protection, add two registers that determine the range of legal addresses a program may access: – base register – holds the smallest legal physical memory address. – Limit register – contains the size of the range • Memory outside the defined range is protected. 2.20 Applied Operating System Concepts A Base And A limit Register Define A Logical Address Space 2.21 Applied Operating System Concepts Protection Hardware • When executing in monitor mode, the operating system has unrestricted access to both monitor and user’s memory. • The load instructions for the base and limit registers are privileged instructions. 2.22 Applied Operating System Concepts CPU Protection • Timer – interrupts computer after specified period to ensure operating system maintains control. – Timer is decremented every clock tick. – When timer reaches the value 0, an interrupt occurs. • Timer commonly used to implement time sharing. • Time also used to compute the current time. • Load-timer is a privileged instruction. 2.23 Applied Operating System Concepts General-System Architecture • Given the I/O instructions are privileged, how does the user program perform I/O? • System call – the method used by a process to request action by the operating system. – Usually takes the form of a trap to a specific location in the interrupt vector. – Control passes through the interrupt vector to a service routine in the OS, and the mode bit is set to monitor mode. – The monitor verifies that the parameters are correct and legal, executes the request, and returns control to the instruction following the system call. 2.24 Applied Operating System Concepts Use of A System Call to Perform I/O
