FACULTY OF ENGINEERING AND ARCHITECTURE
AMERICAN UNIVERSITY OF BEIRUT
FALL 2010 - 2011
FINAL EXAM
DIGITAL SYTEMS DESIGN (EECE320)
January 28, 2010
NAME: _____________________
ID: _____________________
Circle the name of your instructor: Ali Chehab Youssef Nasser
CLOSED BOOK (2 HOURS)
WRITE YOUR NAME AND ID NUMBER IN THE SPACE PROVIDED ABOVE.
CALCULATORS ARE NOT ALLOWED.
PROVIDE YOUR ANSWERS IN THE SPACE PROVIDED ON THE QUESTION SHEET.
THE SCRATCH BOOKLET WILL NOT BE CONSIDERED IN GRADING.
______________________________________________________________________
Problem
Total Points
Earned Points
1
6
2
6
3
9
4
10
5
8
6
7
7
6
8
6
9
6
10
8
11
10
12
6
13
12
Total
100
EECE 320
FINAL EXAM
2/10

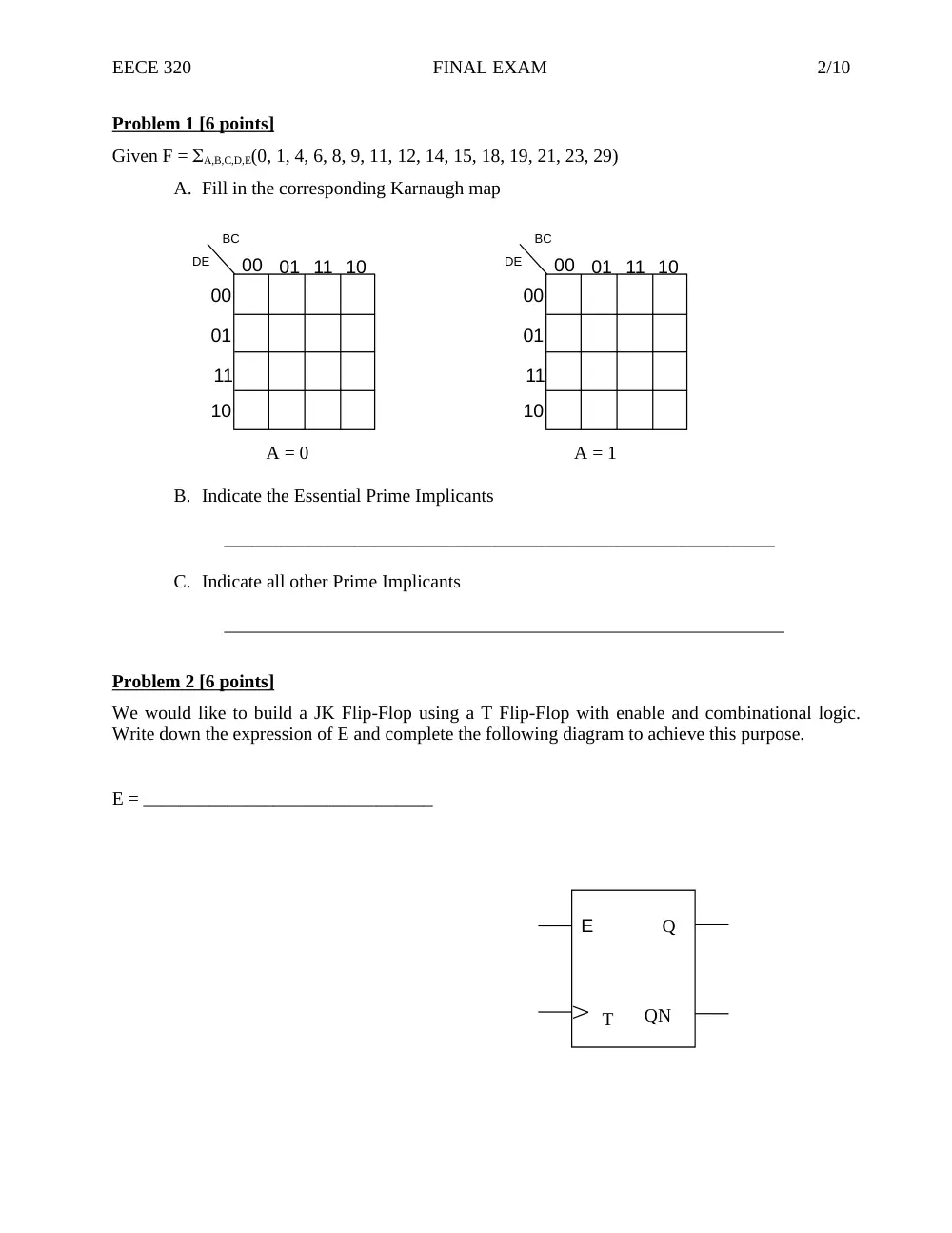

Problem 1 [6 points]
Given F = A,B,C,D,E(0, 1, 4, 6, 8, 9, 11, 12, 14, 15, 18, 19, 21, 23, 29)
A. Fill in the corresponding Karnaugh map
A = 0
A = 1
B. Indicate the Essential Prime Implicants
___________________________________________________________
C. Indicate all other Prime Implicants
____________________________________________________________
Problem 2 [6 points]
We would like to build a JK Flip-Flop using a T Flip-Flop with enable and combinational logic.
Write down the expression of E and complete the following diagram to achieve this purpose.
E = _______________________________
E
Q
QN
T
DE
BC
00
01 11 10
00
01
11
10
DE
BC
00
01 11 10
00
01
11
10
EECE 320
FINAL EXAM
3/10
Problem 3 [9 points]
It is required to design a combinational network that converts from the (2421) code to the BCD
code as given in the truth table below. Unused code words should be considered as don’t cares to
simplify your design.
Digit
A
B
C
D
X
Y
Z
0
0
0
0
0
0
0
0
1
0
0
0
1
0
0
1
2
0
0
1
0
0
1
0
3
0
0
1
1
0
1
1
4
0
1
0
0
1
0
0
5
1
0
1
1
1
0
1
6
1
1
0
0
1
1
0
7
1
1
0
1
1
1
1
A. Plot the outputs of the network on the following Karnaugh maps.
B. The expressions for X, Y and Z are:
X = _________________________________________
Y = _________________________________________
Z = _________________________________________
EECE 320
FINAL EXAM
4/10
Problem 4 [10 points]
1.
We would like to analyze the following clocked synchronous state machine.
A. Write the next state equations for y1 and y2.
y1* = ____________________________________
y2* = ____________________________________
B. Draw the transition/output table.
w
y2 y1
0
1
Z
0 0
0 1
1 1
1 0
y2* y1*
C. Draw the state diagram
EECE 320
FINAL EXAM
5/10

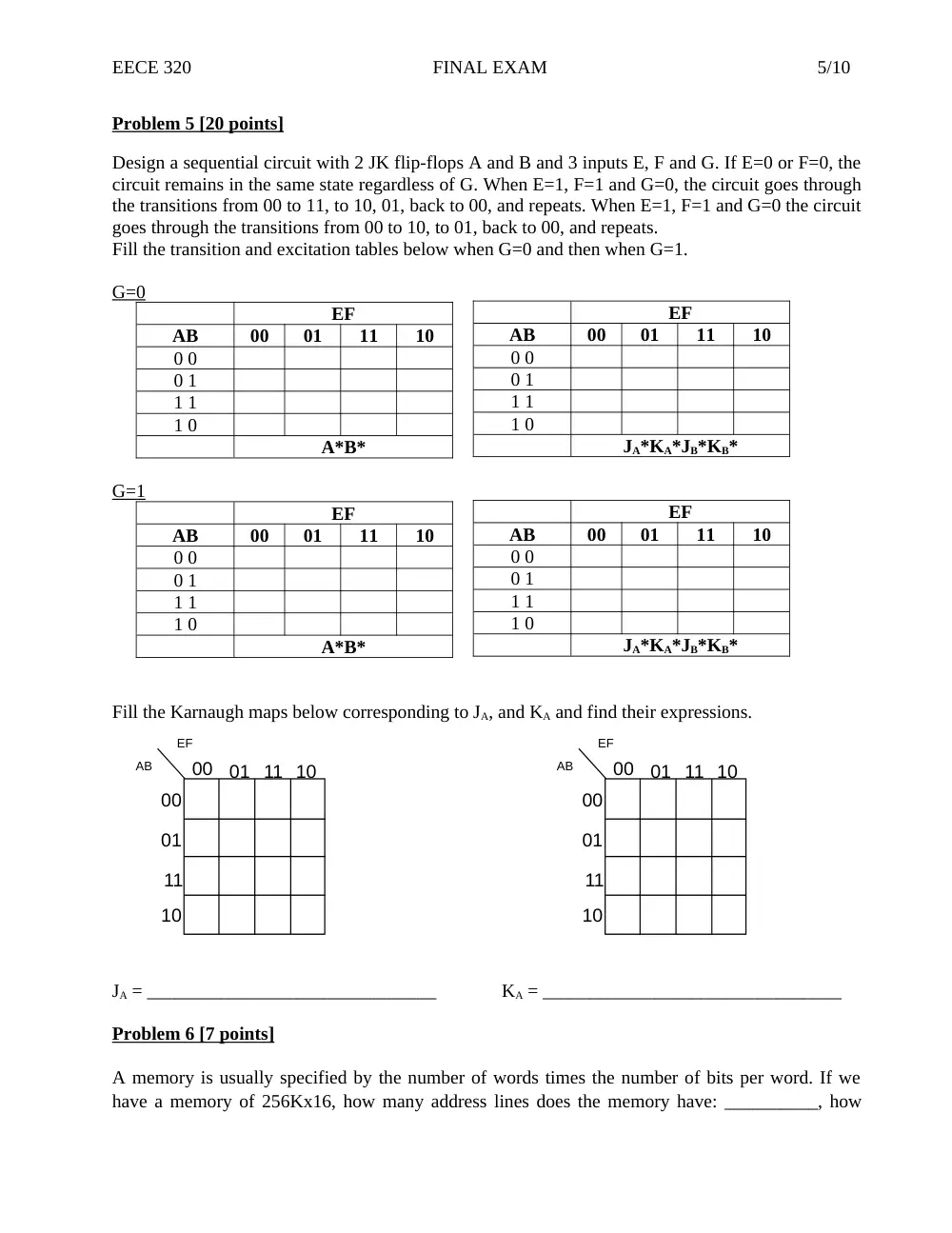

Problem 5 [20 points]
Design a sequential circuit with 2 JK flip-flops A and B and 3 inputs E, F and G. If E=0 or F=0, the
circuit remains in the same state regardless of G. When E=1, F=1 and G=0, the circuit goes through
the transitions from 00 to 11, to 10, 01, back to 00, and repeats. When E=1, F=1 and G=0 the circuit
goes through the transitions from 00 to 10, to 01, back to 00, and repeats.
Fill the transition and excitation tables below when G=0 and then when G=1.
G=0
EF
AB
00
01
11
10
0 0
0 1
1 1
1 0
A*B*
G=1
EF
AB
00
01
11
10
0 0
0 1
1 1
1 0
A*B*
Fill the Karnaugh maps below corresponding to JA, and KA and find their expressions.
JA = _______________________________ KA = ________________________________
Problem 6 [7 points]
A memory is usually specified by the number of words times the number of bits per word. If we
have a memory of 256Kx16, how many address lines does the memory have: __________, how
EF
AB
00
01
11
10
0 0
0 1
1 1
1 0
JA*KA*JB*KB*
EF
AB
00
01
11
10
0 0
0 1
1 1
1 0
JA*KA*JB*KB*
AB
EF
00
01 11 10
00
01
11
10
AB
EF
00
01 11 10
00
01
11
10
EECE 320
FINAL EXAM
6/10
many data lines does it have: ______________, and how many bits in total does it have (as a power
of 2): ____________
A 128K x 32 RAM chip is designed in such a way that its cell array is square, i.e., it contains an
equal number of bits per row and column. A row decoder is used to select a row, and a column
decoder is used to select the appropriate word within a column. What is the number of address bits
needed to acces a row: ______________ and what is the number of address bits needed to access 32
bits within a column: ________________
EECE 320
FINAL EXAM
7/10
Problem 7 [6 points]
A 4-to-16 Decoder has 4 inputs A, B, C, D, and 16 outputs Y0, …, Y15. Design this decoder using
2-to-4 Decoders with Enable.
Problem 8 [6 points]
Design an 8-input multiplexer with data inputs D7, D6, …, D0 and control inputs S2, S1, and S0,
using only 2-input multiplexers.
EECE 320
FINAL EXAM
8/10
Problem 9 [6 points]
We would like to implement the function given below using a 4-to-1 multiplexer as shown below.
Indicate what should be connected to the inputs of the Multiplexer.
A
B
C
F
0
0
0
1
0
0
1
0
0
1
0
1
0
1
1
0
1
0
0
1
1
0
1
1
1
1
0
0
1
1
1
0
B C
Problem 10 [8 points]
For the following circuit, complete the corresponding timing diagram shown below. Assume all
flip-flops are initialized to zero.
X
A
B
C
I0
I1
Z
I2
I3
S1 S0
CLK
EECE 320
FINAL EXAM
9/10
Problem 11 [10 points]
Using T flip-flops with Enable, design a counter that counts as follows: 0, 2, 4, 6, 8, 1, 3, 5, 9, 0,
etc. In case of an illegal state like 10, 11, 12, 13, 14, and 15 we should use minimum risk and move
the counter to the initial state of 0.
A. Fill the next state table and excitation tables.
A
B
C
D
A*
B*
C*
D*
E1
E2
E3
E4
0
0
0
0
0
0
0
1
0
0
1
0
0
0
1
1
0
1
0
0
0
1
0
1
0
1
1
0
0
1
1
1
1
0
0
0
1
0
0
1
B. Derive the excitation equations for E1, and E4.
E1 E4
E1 = _____________________________
E4 = _____________________________
CD
AB
00
01 11 10
00
01
11
10
CD
AB
00
01 11 10
00
01
11
10
EECE 320
FINAL EXAM
10/10
Problem 12 [6 points]
Using a Moore machine, design a sequence detector that would output a Z=1 only after detecting on
its single input X, a sequence of 0011 or a sequence of 1100 and it stops at the final state, in other
words, don’t check for X after the final state.
A. Draw the state diagram in the space below.
Problem 13 ( 12 points)
Write a VHDL code to implement a Moore sequence detector that detects on a single input, X, two
consecutive ones (11).
EECE 320
FINAL EXAM
11/10
