MECH 314 Problems 8, Spring 2014

American University of Beirut · Introduction to Fluids Engineering · 6 pages

All MECH 314 files
MECH 314 Problems 8, Spring 2014, page 1

Stuck on a question? A tutor can walk you through it.

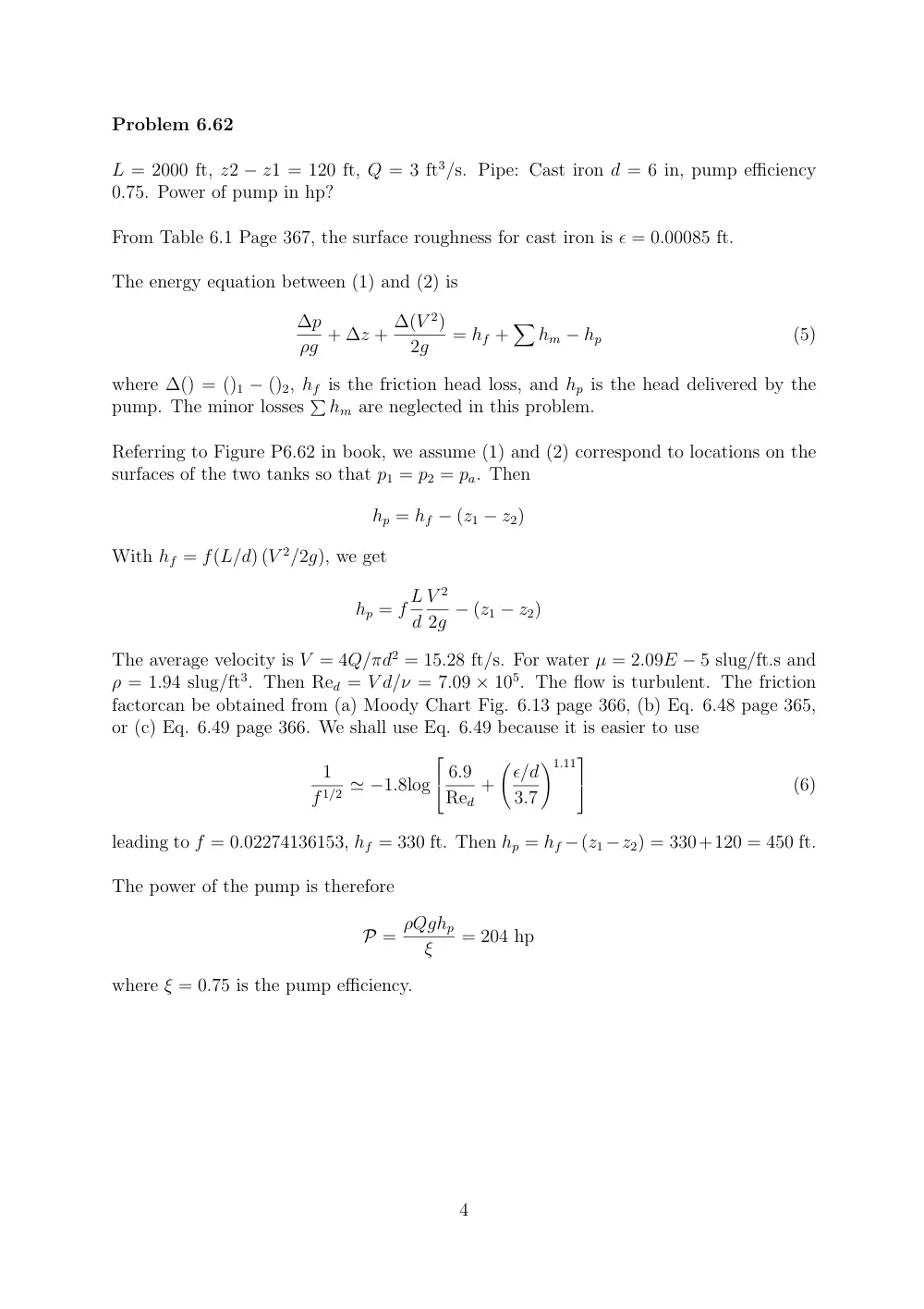

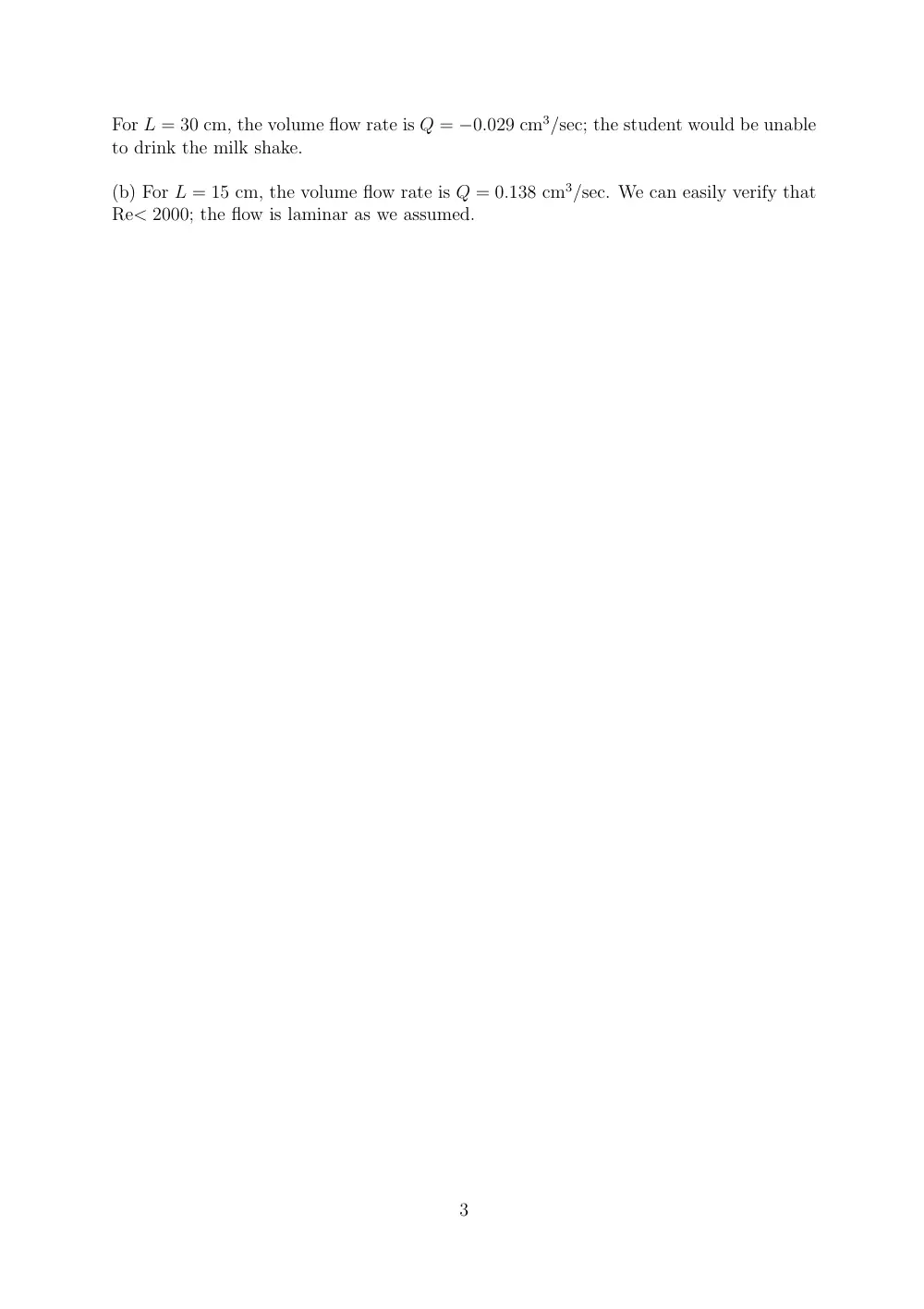

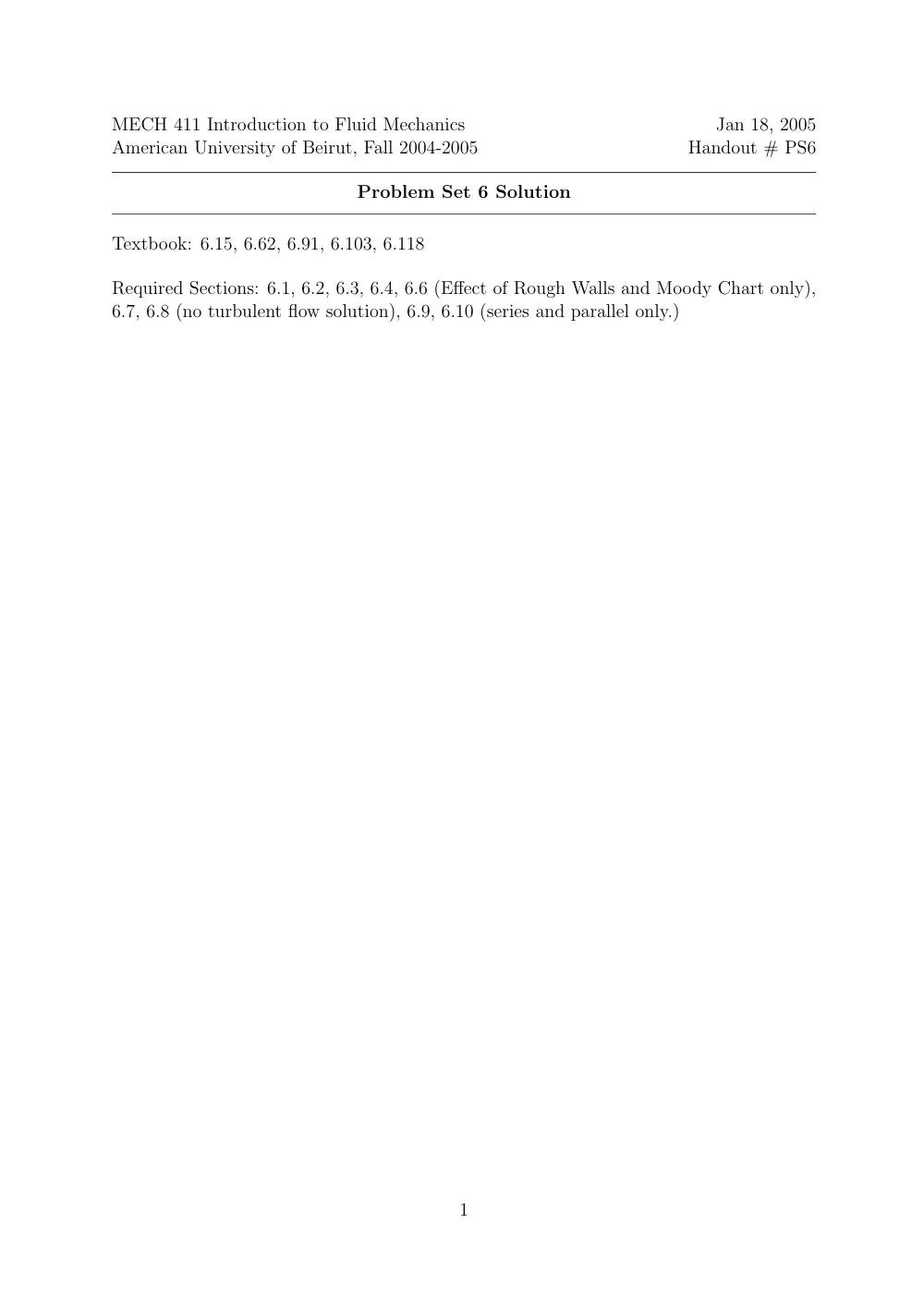

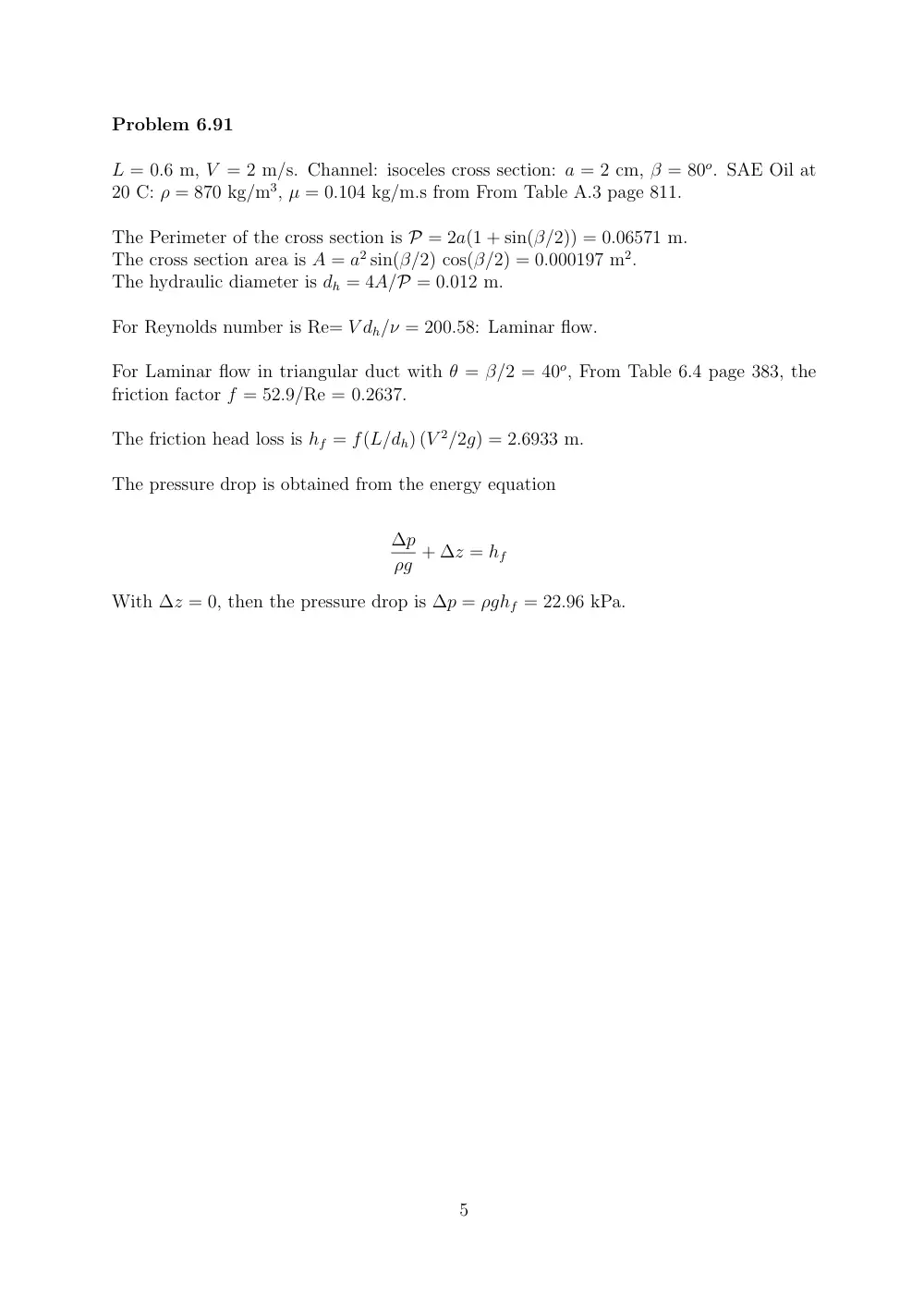

MECH 314 Problems 8, Spring 2014, page 2 MECH 314 Problems 8, Spring 2014, page 3 MECH 314 Problems 8, Spring 2014, page 4 MECH 314 Problems 8, Spring 2014, page 5 MECH 314 Problems 8, Spring 2014, page 6

More MECH 314 files

Show the text of this problems
